optoLAN 10BASE-T1S LAN8670 - (USB-VA6K)

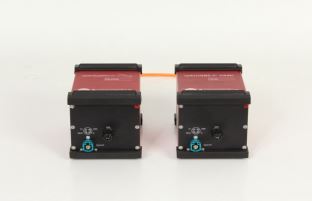

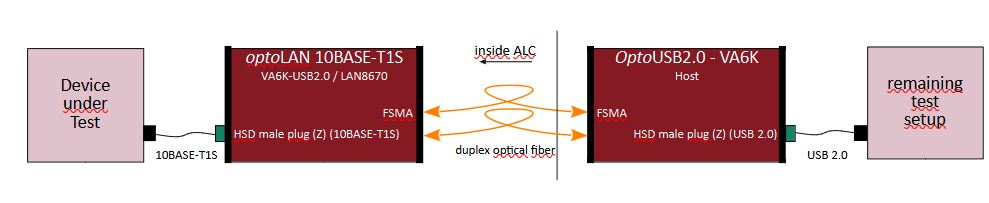

The system consists of an optoLAN 10BASE-T1S VA6K-100BASE-TX / LAN8670 Transceiver and an optoUSB2.0 -VA6K Host. It is a bidirectional optical transmission system that converts data between USB 2.0 and automotive Ethernet 10BASE-T1S (i.e. media converter from USB to automotive Ethernet). It consists of two battery supplied devices connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.
Application
Technical Data
| Channels: | 1 |
| Signal I/O: | Rosenberger HSD (others on request) |
| Data rate: | 10 Mbps |
| Power supply: | 10 NiMH cells with 4 Ah; >8h; 5-pole connector |
| Case dimensions: | approx. 136 mm x 86 mm x 85 mm aluminium with rubber protection |
| Weight: | approx. 1200 g, one device |
Optical fiber
| Connector / type: | FSMA / Duplex-Multimode LWL 62.5/125 µm |
Options
- 10 cell external power pack (4Ah or 10Ah) for run me enhancement
- various adapter cables and confeconed/customized soluons
- push-pull charge connector (advantage: save setup me)
Downloads
Contact
If you have any further questions about this or another product then please do not hesitate to contact us via e-mail sales(at)mkemc.com.
