Analog transmission

The Analog transmission links of the „U-series“ can be used to transmit signals in EMI and EME tests, as well as in high voltage systems or other installations, for which a galvanic isolation is necessary or if huge differences in potential or large distances have to be bridged. The devices can be used to optically transmit signals from inside to the outside of the ALC or to transmit a stimulus inside the chamber (with optional output filter).

One link typically exists of a battery supplied transmitter and an also battery supplied receiver connected to each other with an optical fiber (standard: 62,5/125µm). With the optical transmission, the shielded case and the external filter, the system is well equipped for EMI and EME tests.

Our systems are available with different numbers of channels, resolutions, band widths, and input voltage levels. Up to 16 channels can be integrated in one device, the receivers can be implemented as shielded aluminum housing, 19” rack housing or plastic table top housing.

As we develop and build the devices in house, we can adapt to many different needs, varying from the standard setups. Please contact us to help you finding the right product for your needs.

Option 19"

One side of the analog links can be integrated in a 19" rack.

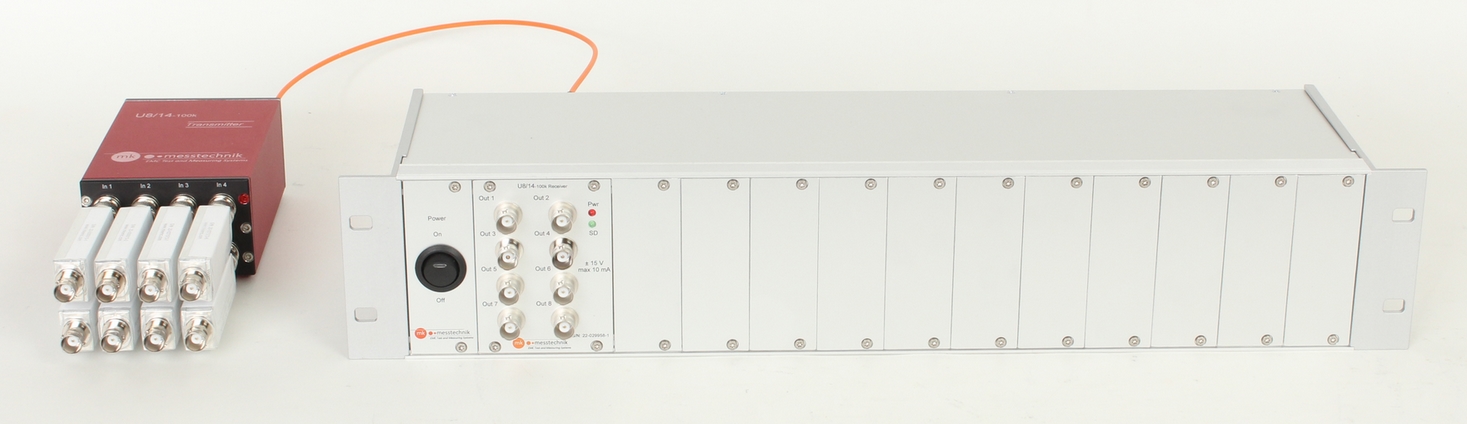

 On the picture below there are U2/12-1M together with automotive links CAN-FD, CAN-HS, CAN-LS, and LIN, all integrated in the 19" case. Beside the 19" receiver you can see the usual shielded aluminum cases for use in an anechoic chamber.
