Filter for analog links

U2/14-1M - 2 channel analog system with 1MHz cutoff frequency, BNC filter

  • the scope of delivery of our analog transmitters (U2/12, U16/14,…) always include the suitable filters which can be connected to the devices
  • we can also provide filters with voltage divider for higher input voltages or for other applications - please contact us and ask!
  • you can also buy empty filter housings for your own projects. Even customized milled and turned parts are possible, for smaller quantities as well. We can also help you with the construction of the housings

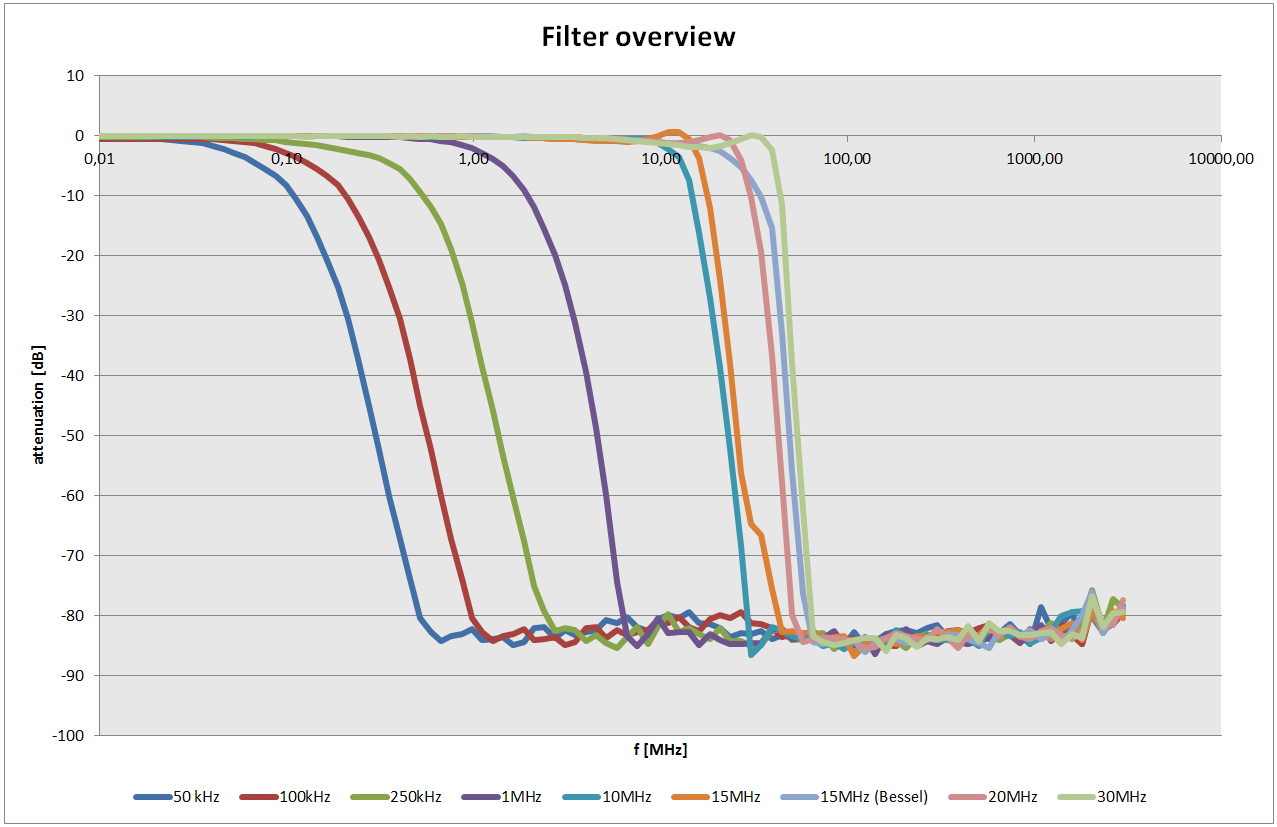

Filterkurven



Examples for input filters Examples for output filters

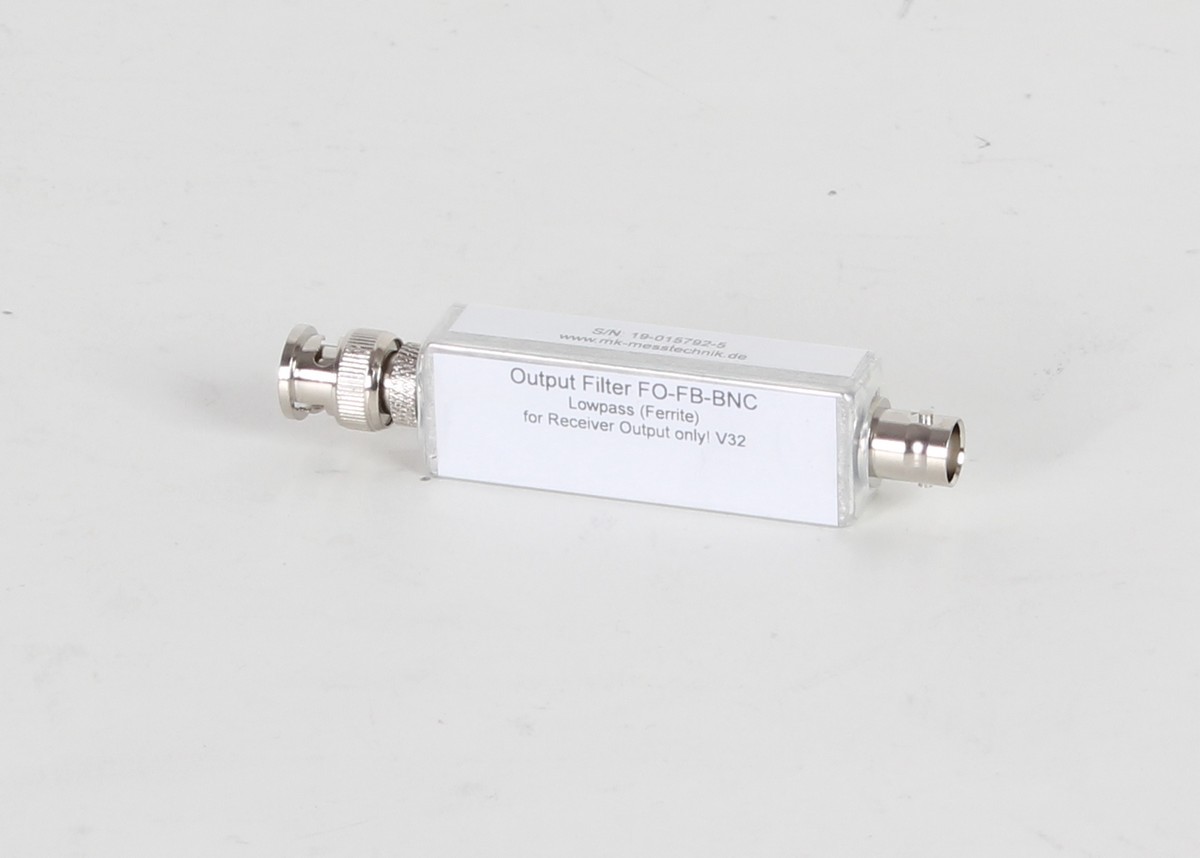

Input filter 1 MHz  Output filter

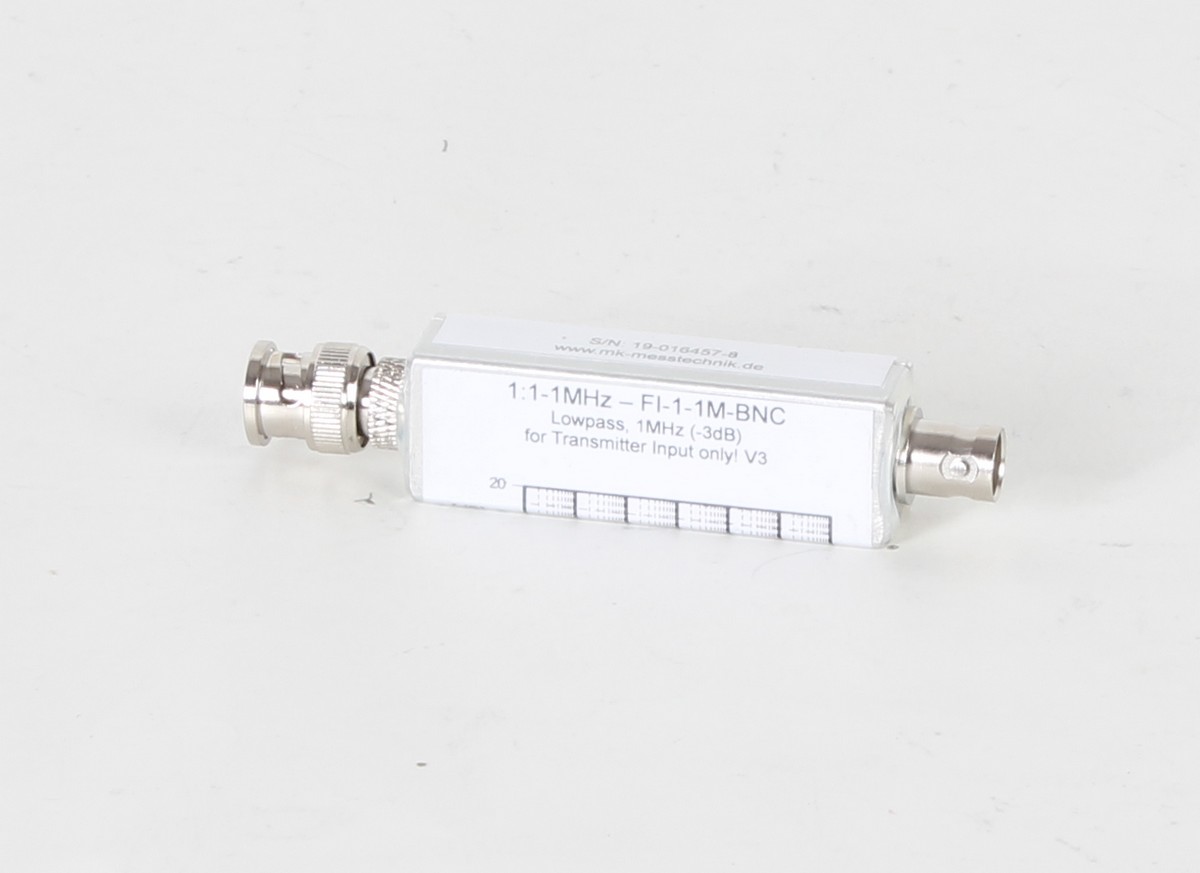

Input filter 1 MHz, BNC

Filters for different cutoff frequencies
available, see figure above		 Output filter, BNC

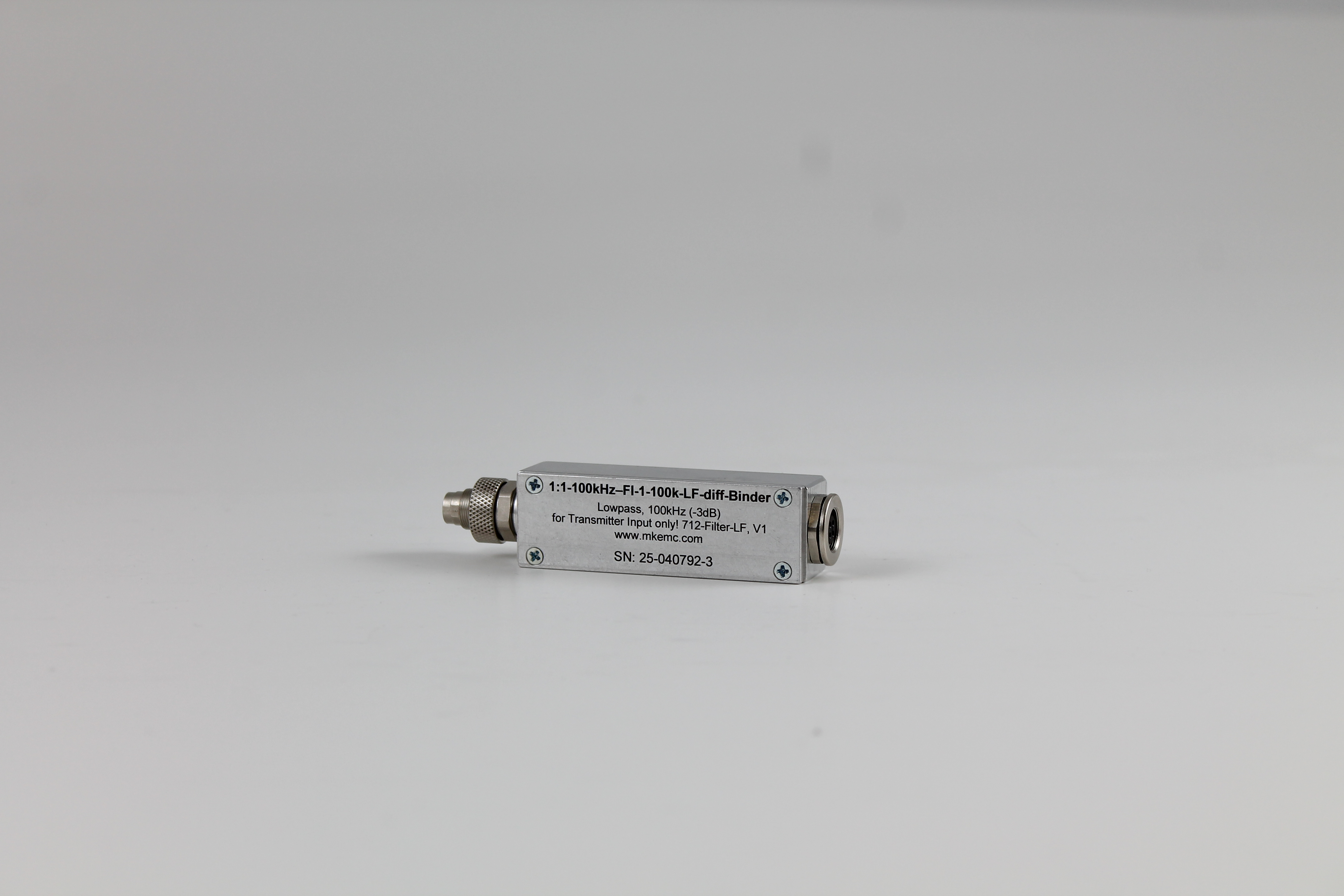

Input filter 100 kHz differential, Binder 712
Input filter 100 kHz, differential

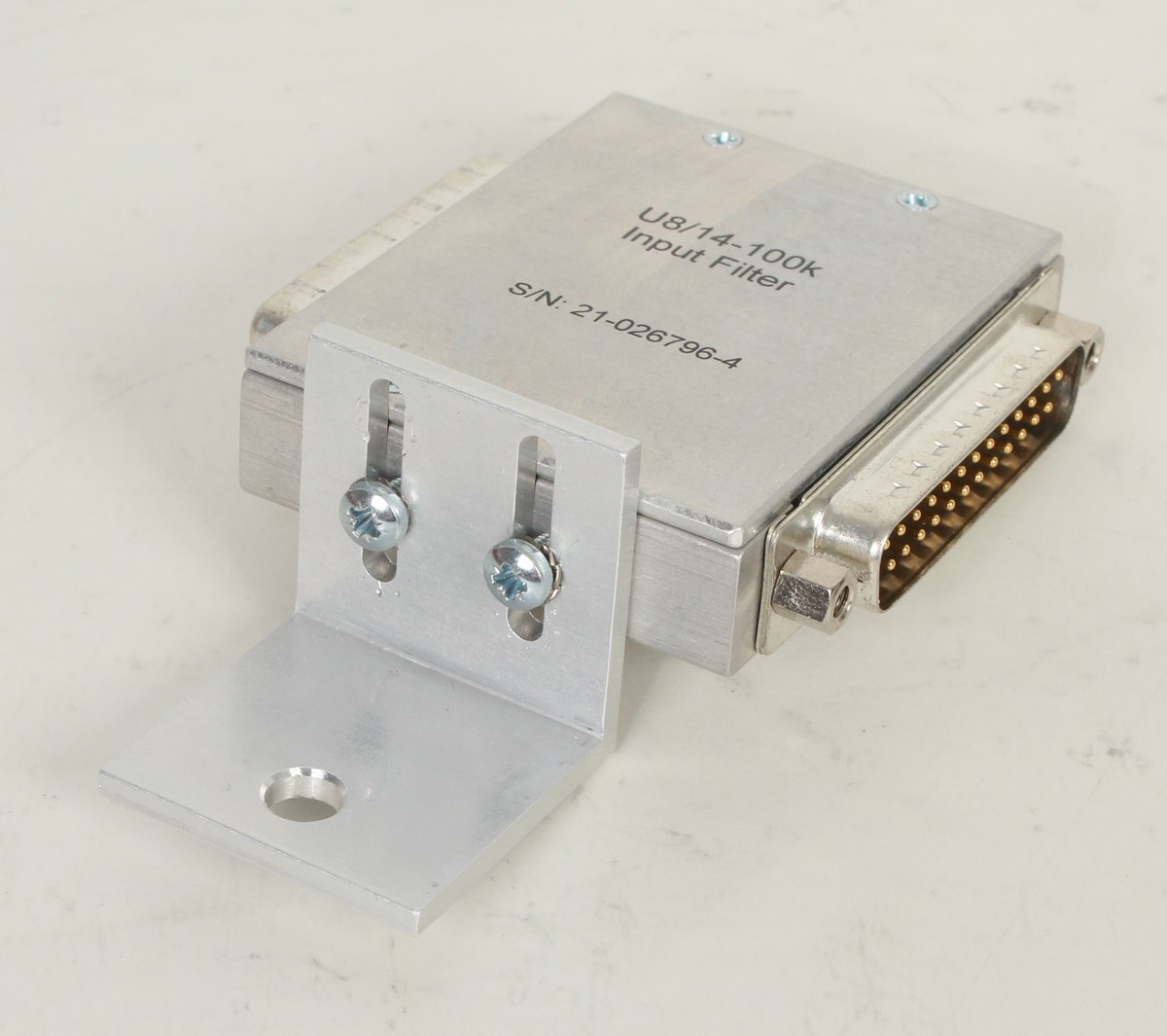

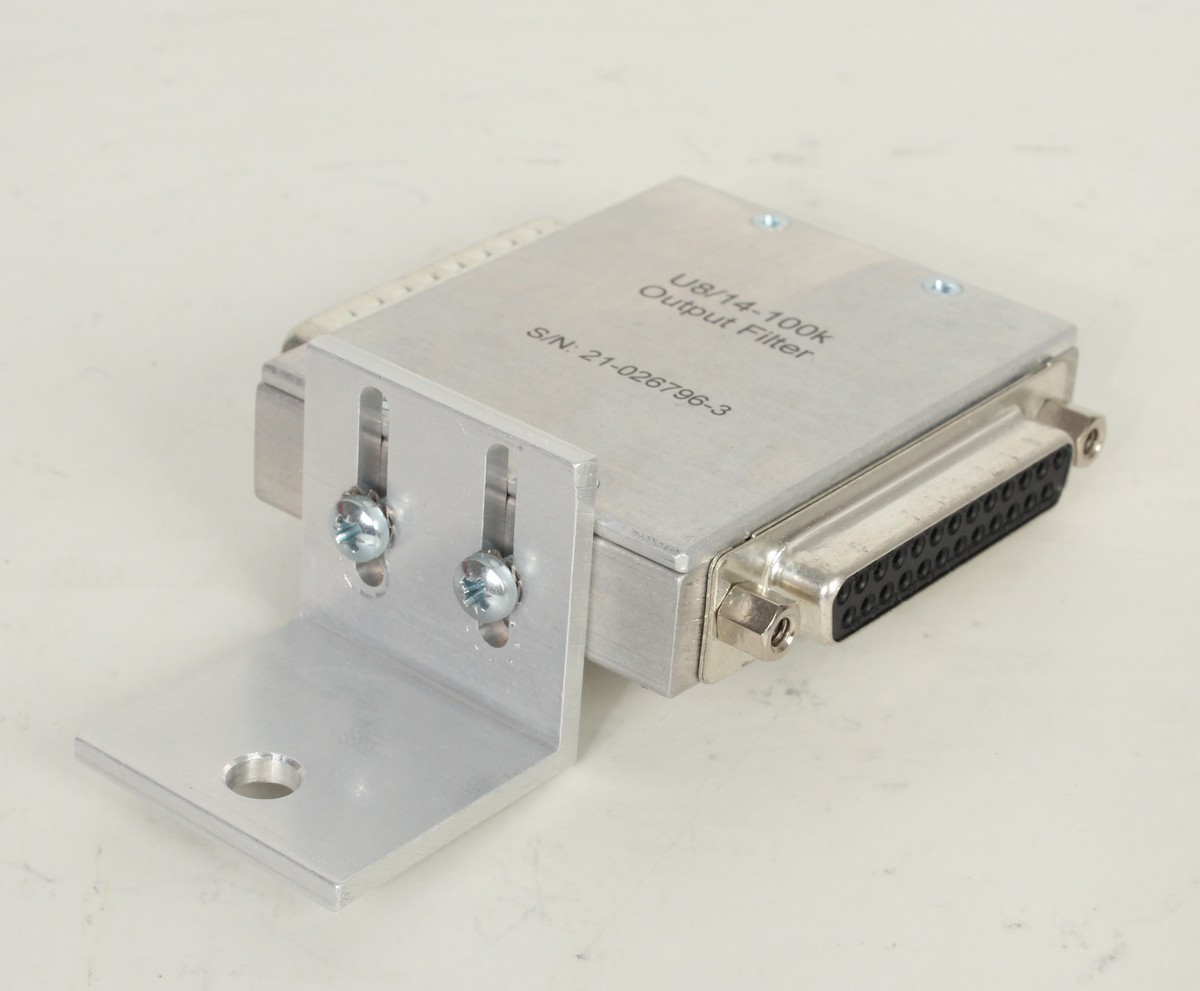

Input filter 100 kHz, SUB-D  Output filter, SUB-D
Input filter, SUB-D Output filter, SUB-D

Voltage divider

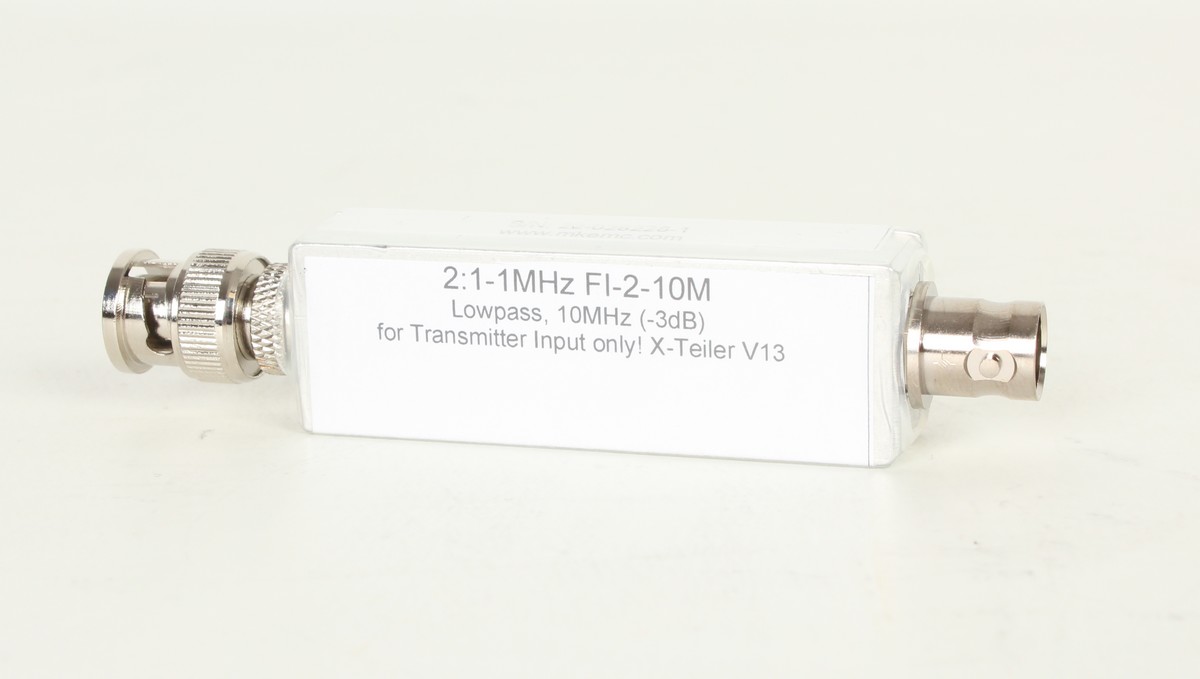

Input filter 10 MHz, 2:1, BNC
Input filter 10 MHz, 2:1

also available:
3:1
4:1
5:1 ...
