optoLAN 10GBASE-T1 BCM89890
This optoLAN-10G/5G/2.5GBase-T1 BCM89890 system is a digital, bidirectional, optical transmission device for automotive Ethernet LAN-10G/5G/2.5GBase-T1 signals.
The system uses optical transmission on a fiber to avoid emissions and susceptibility of electric, magnetic, or electromagnetic fields. The system is used for the transmission and supervision of signals during EMC tests.

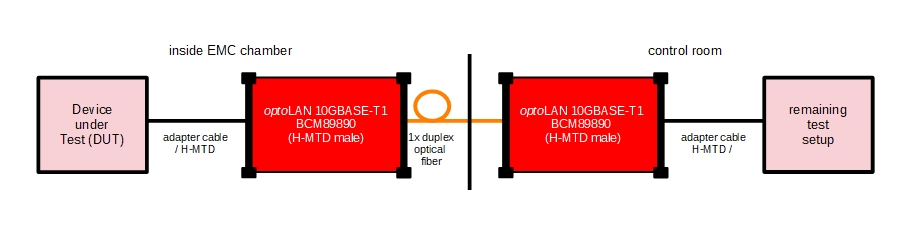

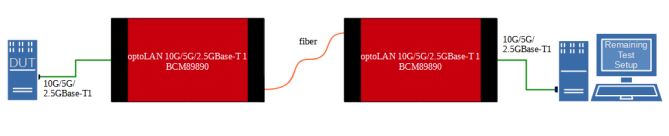

It consists of two battery supplied devices connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.
Application
Technical Data
| Channels: | 1 |
| Data rate: |
max. 10 Gbit/s (2.5GBaseT / 5G BaseT/ 10G BaseT) switchable |
| Power supply: | 10 NiMH cells with 4 Ah; >20 h; 5-pole connector |
| Case dimensions: | approx. 137 mm x 86 mm x 86 mm aluminium with rubber protection |
| Weight: | approx. 1200 g, one device |
Optical fiber
| Connector / type: | F-SMA / duplex multimode 62.5/125 µm |
Options
- 10 cell external power pack (4Ah or 10Ah) for runtime enhancement
- various adapter cables and confeconed/customized soluons
- push-pull charge connector (advantage: save setup me)
Downloads
Contact
If you have any further questions about this or another product then please do not hesitate to contact us via e-mail sales(at)mkemc.com.
