optoA2B

TheoptoA2B can be used for the optical transmission of A2B signals. It consists of master and slave which are supplied by internal batteries and which are connected with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests.

One side of the system can be integrated in a 19" rack housing (optional). If the equipment is always used at the same place, this can reduce error sources, needs a shorter set up time, and does not occupy as much space on the table. The 19" case can hold up to 8 different or equal automotive links (SENT, CAN, Flexray etc.). The channels can be integrated later on.

Product	Download
Datasheet optoA2B

Integration optoA2B in SigmaStudio+

Our optoA2B is compatible to the A2B Analyzer by Analog Devices (ADI).

In order to integrate our optoA2B, some settings have to be adjusted in SigmaStudio+. The instructions can be found on the ADI website (English).

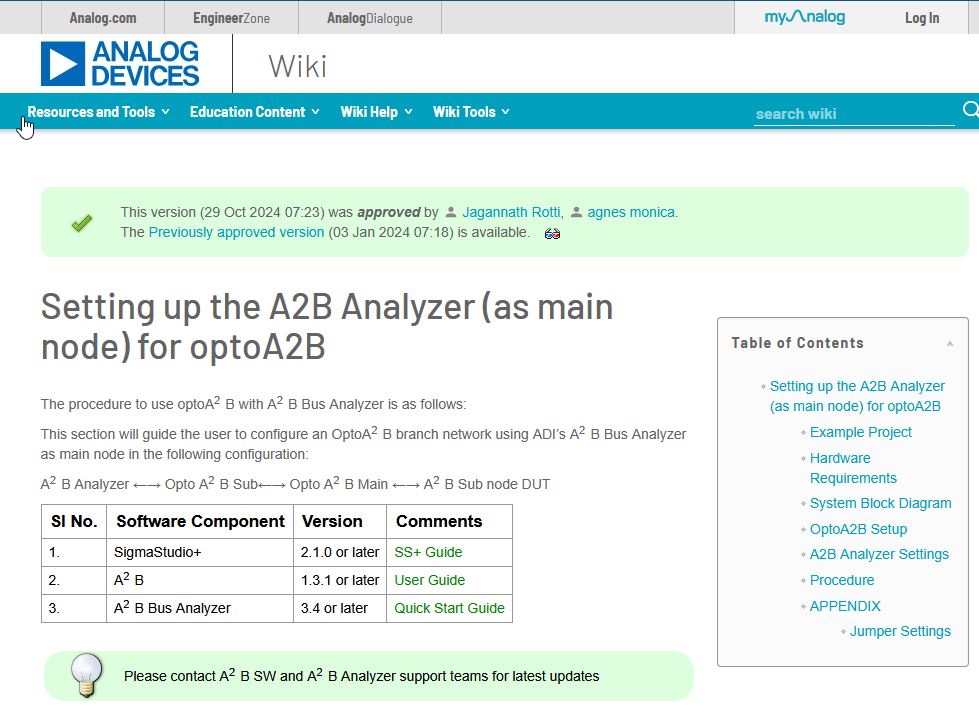

To integrate the optoA2B, ADI's SigmaStuido+ software has dedicated optoA2B blocks, which will allow you to easily create a bus including the optoA2B devices. A detailed description is found on the ADI website:

https://wiki.analog.com/resources/tools-software/a2b-bus-analyzer/a2ba_opto
