Supply cables for camera systems

The shielded supply cables are available for the screw system Binder 712, for the new push-pull system PP12. We can also provide adapter cables to be able to use new camera systems with systems you already have. We can also produce cables for the push-pull PP9 system or for older cameras with 2pole connectors.

Each cable is has folding ferrites applied to it in order to reduce disturbances.

As the cables are manufacured in-house we can provide customized lengths.

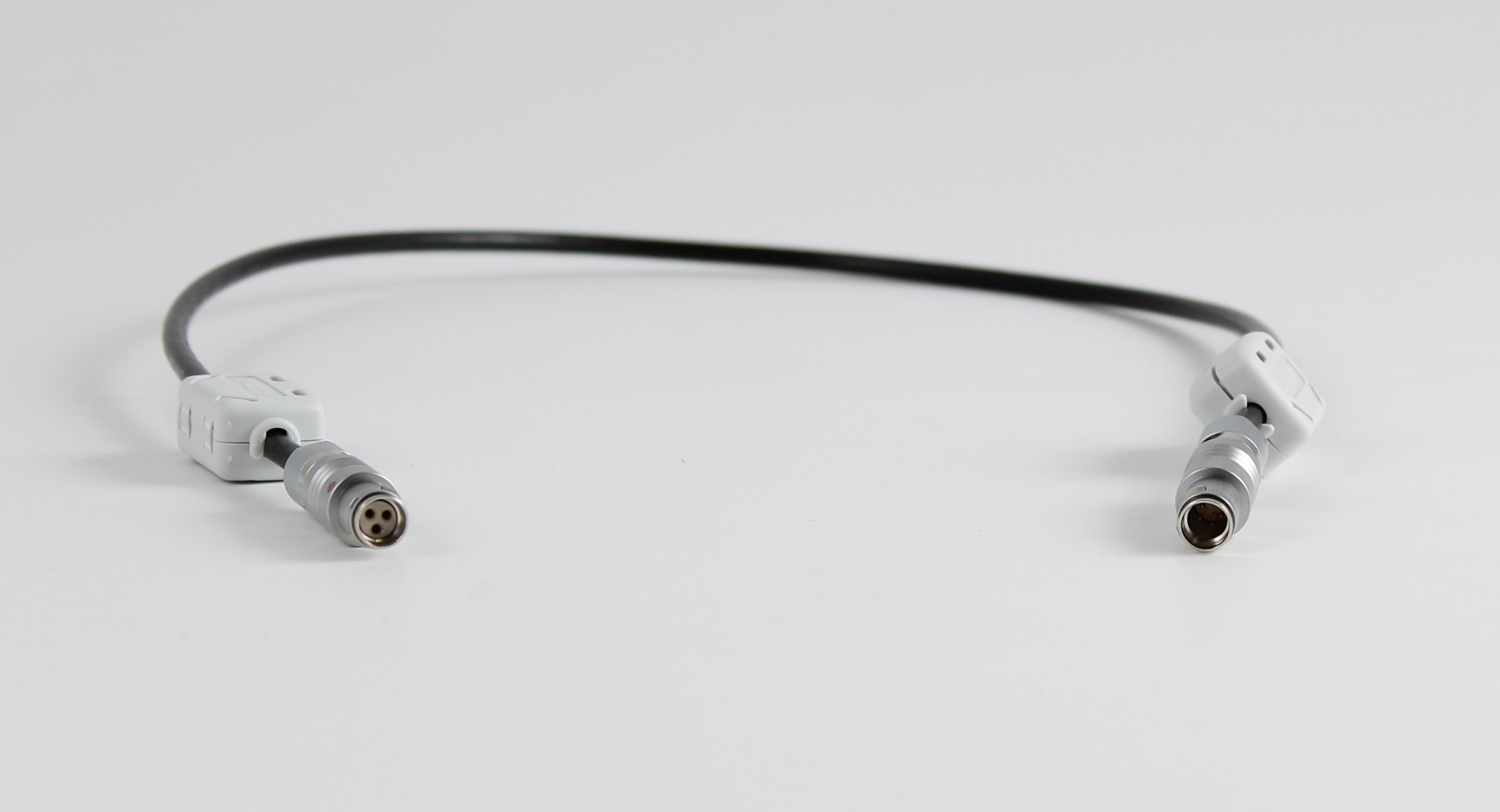

• push-pull system PP12: Cables with a length of 60 cm, as well as 140 cm are part of the scope of delivery of standard camera sytems.
  Due to the double shielding, the cables of the push-pull system are by default fit for HiRF applications. A maximal length of approx. 280 cm is possible for double shielding.
  If supply cables longer than 280 cm are needed, we can provide cables with simple shielding, with a maximal length of approx. 15 m.

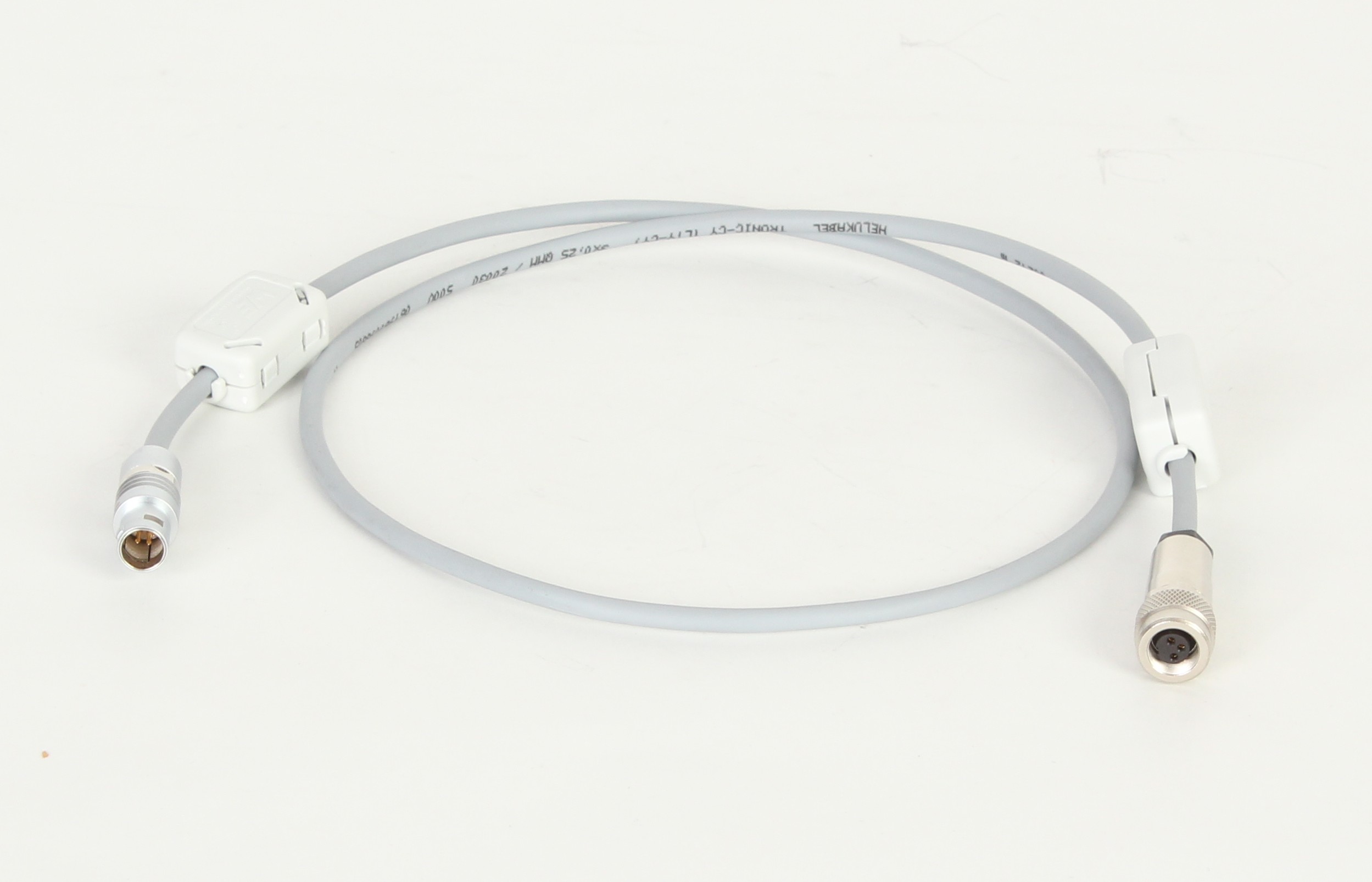

• adapter cables for cameras with push-pull connector PP12 and battery pack/shielded power supply with Binder 712 connector (see photo). Standard lengths are 60 cm and 140 cm respectively, maximal length is approx. 15 m.
  We can also produce adapter cables for cameras with Binder 712 connectors for the supply by the new push-pull system.

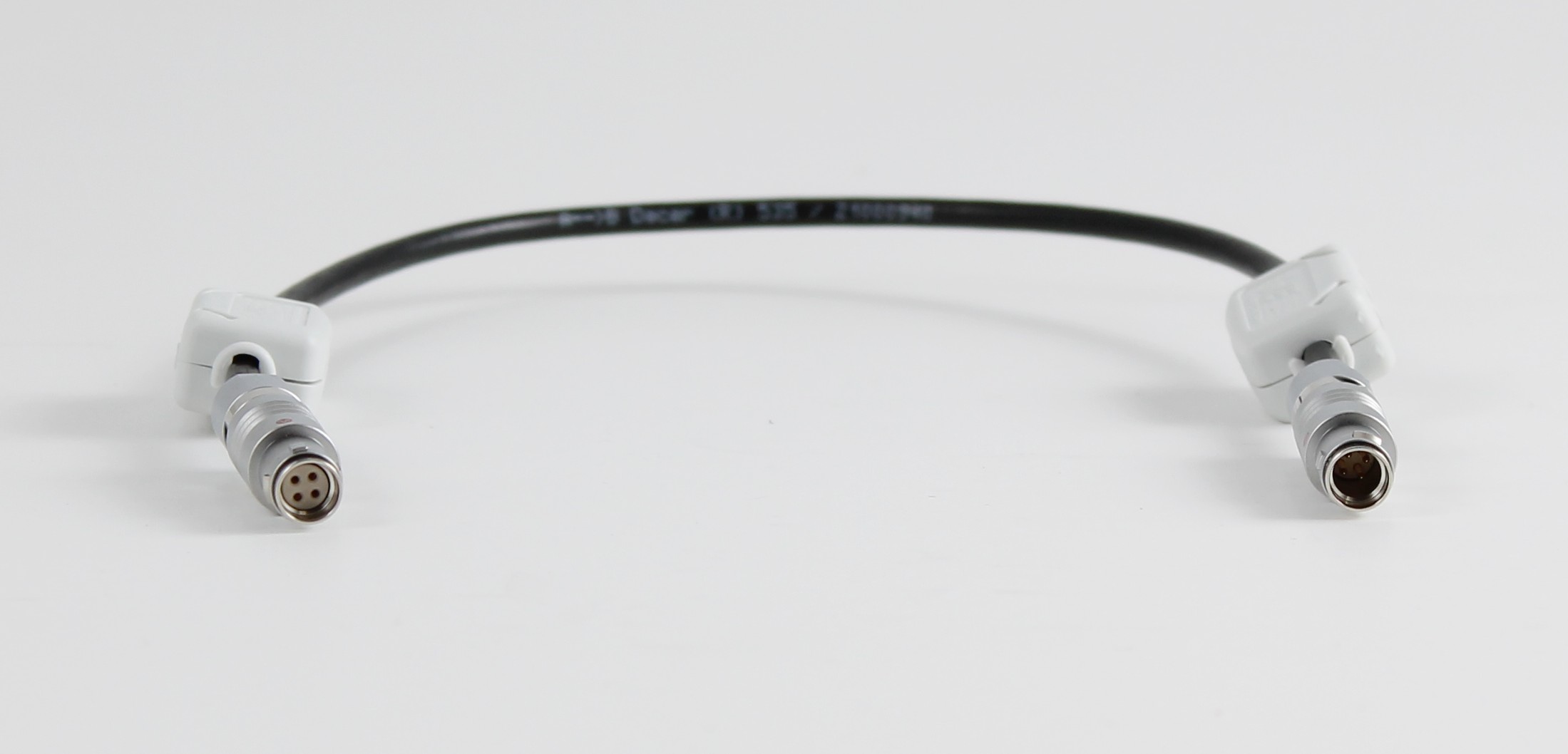

• supply cables for pan/tilt unit PT-02/-03 with push-pull connector PP12 (see photo).
  Supply cables for Binder 712, as well as adapter cables for devices with Binder 712/PP12 are available as well.
