optoSwitch-2-LF
The optoSwitch-2-LF system can be used for remotely or locally switching two independent relays. Remote control via push button or software commands.
It is provided with an integrated mechanical breaker switch allows hard disconnection of electrical system in case of undesired movement of the DUT. Typical use cases are 12 V car battery systems with nominal constant loads of up to 20 A. Maximum current allows short term peak loads of up to 30 A for a maximum of 10 minutes.

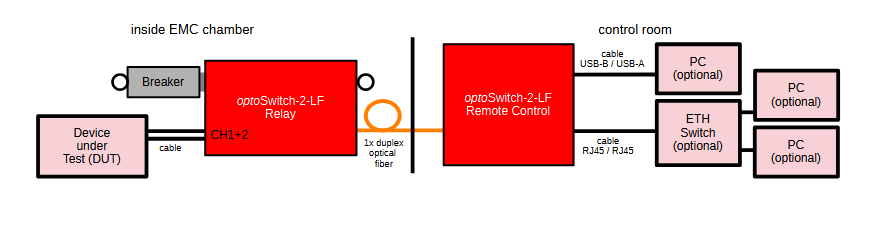

The system consists of one Relay unit (no batt eries) connected to the Remote Control unit with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests with automotive standards.
Field of application and characteristics
Technical data
| Channels: | 2 channels |
| Data rate: | up to 10 Hz |
| Data direction: | bidirectional |
| Input: | banana female connector |
| Output: | banana female connector |
| Power supply: | Relay: external 15 V power supply Remote Control: external 12 V batteries operating time with fully charged batteries: • standby approx. 80 h • 1 relay closed approx. 20 h • 2 relays closed approx. 12 h |
| Power connector: | push-pull 12 mm PP12, Binder 712, on request: push-pull 9 mm PP9 |
| Housing (B x H x L): | anodized aluminum case Relay 80 mm x 80 mm x 140 mm Remote Control 98 mm x 70 mm x 195 mm |
| Weight: | Relay (no batteries) approx. 920 g Remote Control approx. 520 g |
| Optical connector: | 1x FSMA / duplex multimode optical fiber 62.5/125 µm, 850 nm |
Downloads
Accessories and options
- external Power Pack with 5 cells (4 Ah or 10 Ah) for run time enhancement
- push-pull charge connector (advantage: save setup time)
- ...
