optoUSB2.0-VA6K

The optoUSB2.0-VA6K is the successor of the optoUSB2.0-RBDIR.

optoUSB2.0-VA6K

The optoUSB2.0-VA6K system is a digital bidirectional optical transmission device for USB2.0 signals. It is based on the Valens VA6000 chipset and is capable of role reversal function. There is no radio or RF transmitter or comparable integrated in this equipment. It uses optical transmission on a fiber to avoid emissions and susceptibility of electric, magnetic, or electromagnetic fields. The system is used for the transmission and supervision of signals during EMC functional tests.





Application

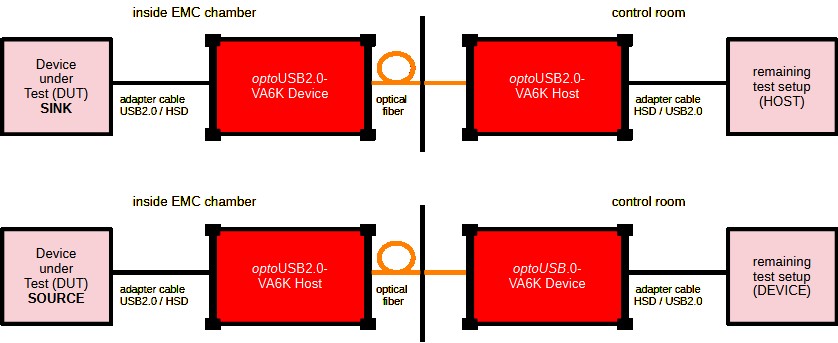

optoUSB2.0-VA6K_setup

Technical Data

Channels: 1 x USB2.0
Data rate: 480 Mbps
Data direction: bidirectional
Signal I/O connector: Rosenberger HSD
Power supply: built-in batteries 4 Ah, consisting of 10x NiMH cells
operating time with fully charged batteries: approx. 20 h (without load)
Case dimensions: approx. 136 mm x 86 mm x 85 mm
aluminium with rubber protection
Weight: approx. 1250 g, one device

Optical fiber

Connector / type: FSMA / duplex multimode fiber 62.5/125 µm

Downloads

Contact

If you have any further questions about this or another product then please do not hesitate to contact us via e-mail sales(at)mkemc.com.

Options

  • 10 cell external power pack (4Ah or 10Ah) for run time enhancement
  • various adapter cables and confectioned/customized solutions
  • push-pull charge connector (advantage: save setup time)

As an alternative to the USB-A/B connectors we offer HSD connectors for the automotive use which have a better RF performance concerning emmission and immunity.

For this, we have different connector cables available as shown below:

  • Cable with Rosenberger HSD connector/USB-A connector and HSD-plugs/USB-B connector

optoUSB with adapter cable Rosenberger HSD to USB-A/-B

  • Cable with Rosenberger HSD connector/USB-A connector/ or HSD connector/USB-A-female connector

optoUSB with adapter cable Rosenberger HSD/USB-A-plug and HSD/USB-A-socket









  • Setup with description

optoUSB with adapter cable
