dAV-Cr-HD-mini camera

Kamera dAV-Cr-HD-mini mit HD-Auflösung

The dAV-Cr-HD-mini camera can be used for the optical and acoustical monitoring of devices under test during EMC measurements. It has an integrated mono microphone and can be remote controlled via fiber from the receiver in the control room. Because of its miniature size and the HD-resolution, high quality DUT surveillance can be done at locations with limited space, e.g. GTEM cells, cars, etc. The dimensions are approx. 135mm x 86mm x 65mm.

With the optical transmission and the shielded case, the camera is well equipped for EMI and EME tests. No PC needed for display!




Datasheet dAV-Cr-HD-mini

Overview of the dAV-C series


Pan/tilt unit PT-02/03

The camera dAV-Cr is mounted on the pan/tilt unit and can be controlled via the receiver dAV-Cr. The pan/tilt unit is supplied by the camera, further wiring is not necessary. The end stops can be set by buttons at the pan/tilt unit (e.g. if the camera would crash into something when moved).

The optional pan/tilt unit PT-02/03 can be connected to the camera by an integrated ¼“ tripod socket. Due to the small dimensions of camera and pan/tilt unit the system can be easily used within a vehicle, e.g. in order to monitor the dashboard.

With the help of the "Move" buttons, the pan/tilt unit can be moved to the desired position on site.


  • Pan/tilt unit PT-02 specifically designed for the mounting at the walls or the ceiling of an anechoic chamber (see right device on the picture)
  • Pan/tilt unit PT-03 for mobile use with reinforced brackets (see pan/tilt on the left)

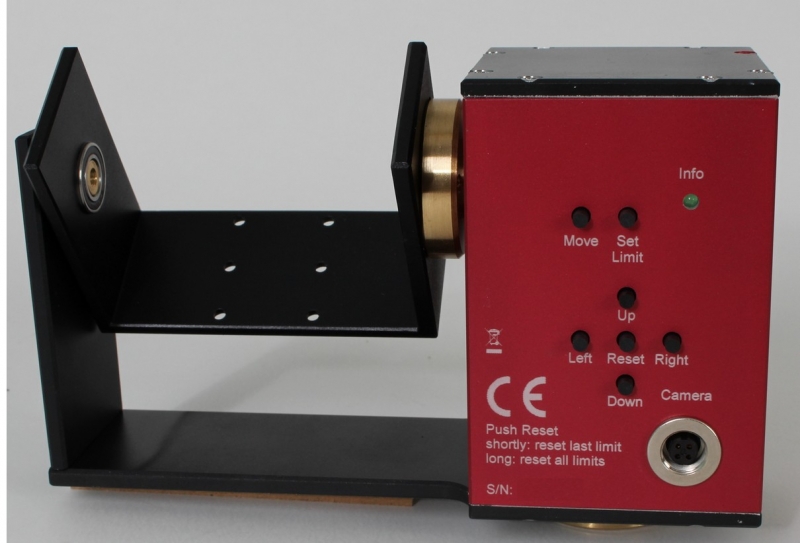

pan/tilt unit PT-02 for wall mount, pan/tilt unit PT-03 for mobile use with reinforced brackets




Dimensions of a pan/tilt unit PT-02
