Wallmount (WCM40)

Verfügbare Wandhalter: Für die Montage an der Wand und an der Decke

The wallmount WCM40 can be fixed to the walls with the help of screws. On the upper level a camera with pan/tilt unit can be placed, on the lower level e.g. the loudspeaker of our intercom system dAV-TRX-PS.

The length of the wallmount is customized, since a short version is sufficient for an anechoic chamber with ferrite tiles. For an EMC chamber with pyramid absorbers the longer version of the wallmount is necessary. If drill holes and the mounting plate is known, we can adapt to these values.

Wallmount - long version for the use between pyramid absorbers









Tripod-170

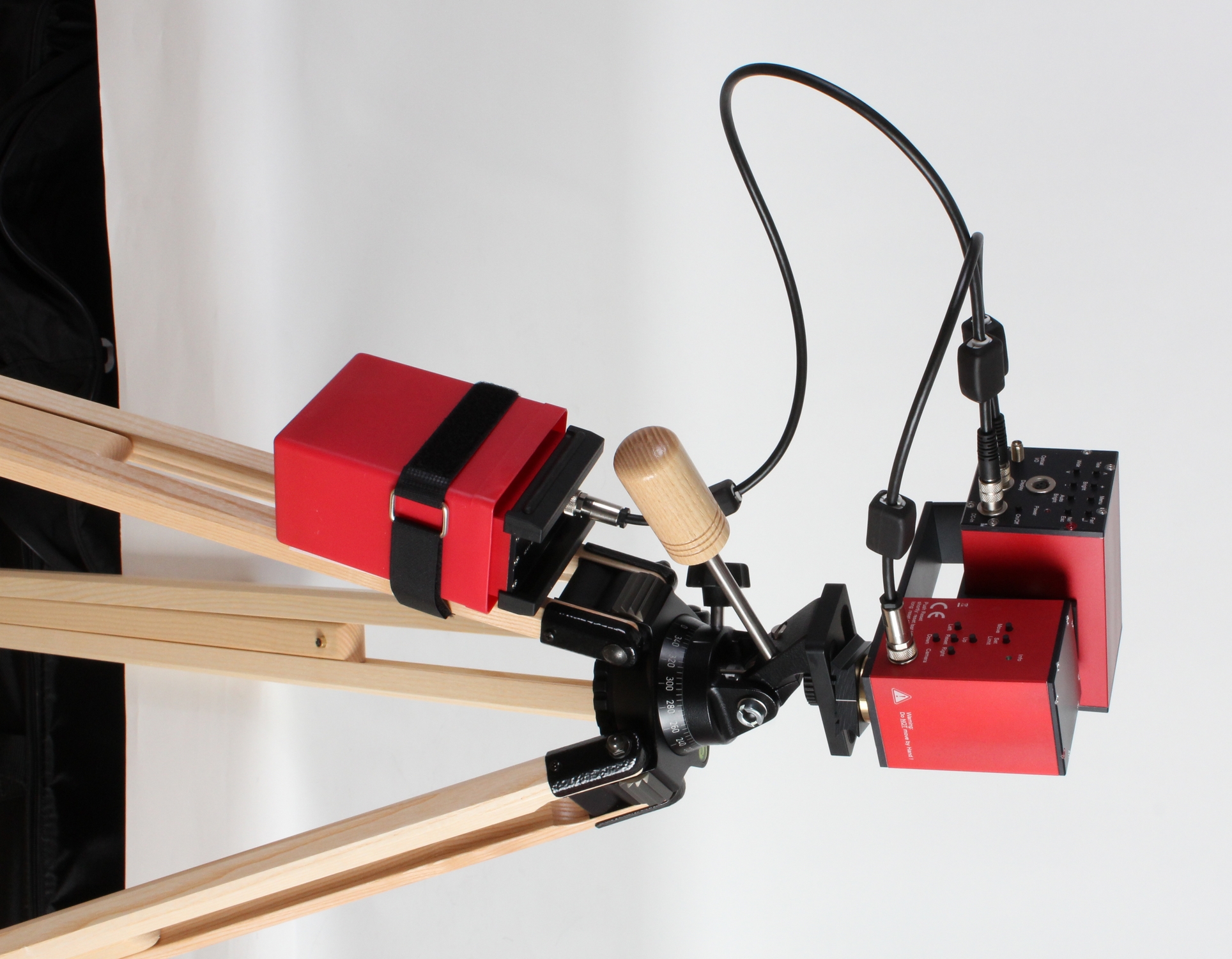

Stativ mit max. Höhe von 170cmThe "classic" wooden tripod with a max. height of 170 cm.


Load capacity 5 kg
2 D pan/tilt attachment
Weight 3.6 kg
Transportation length 106 cm
Minimal height 12 cm
Integrated circular level
Metal fittings - tripods completely without metal available on demand



Folding "tripod-dolly wood"

Stativwagen "tripod-dolly wood"The tripod-170 can be mounted on the tripod dolly that has a brake for each wheel. The dolly is fixed at the tripod with the help of round cords and can be folded for transportation.




Weight 1.88 kg
Transportation length 58 cm



"Tripod-mini"

Ministativ "tripod-mini" mit darauf montierter Kamera. Daneben der Empfänger und ein AkkupackThe "little brother" of the "Tripod-170" can be extended to a max. height of 36 cm and only weighs 700 g.


Load capacity 15 kg
Weight 0.68 kg
Transportation length 26 cm
Minimal height 5 cm
Maximal height 36 cm
Integrated circular level



Monopod-wood

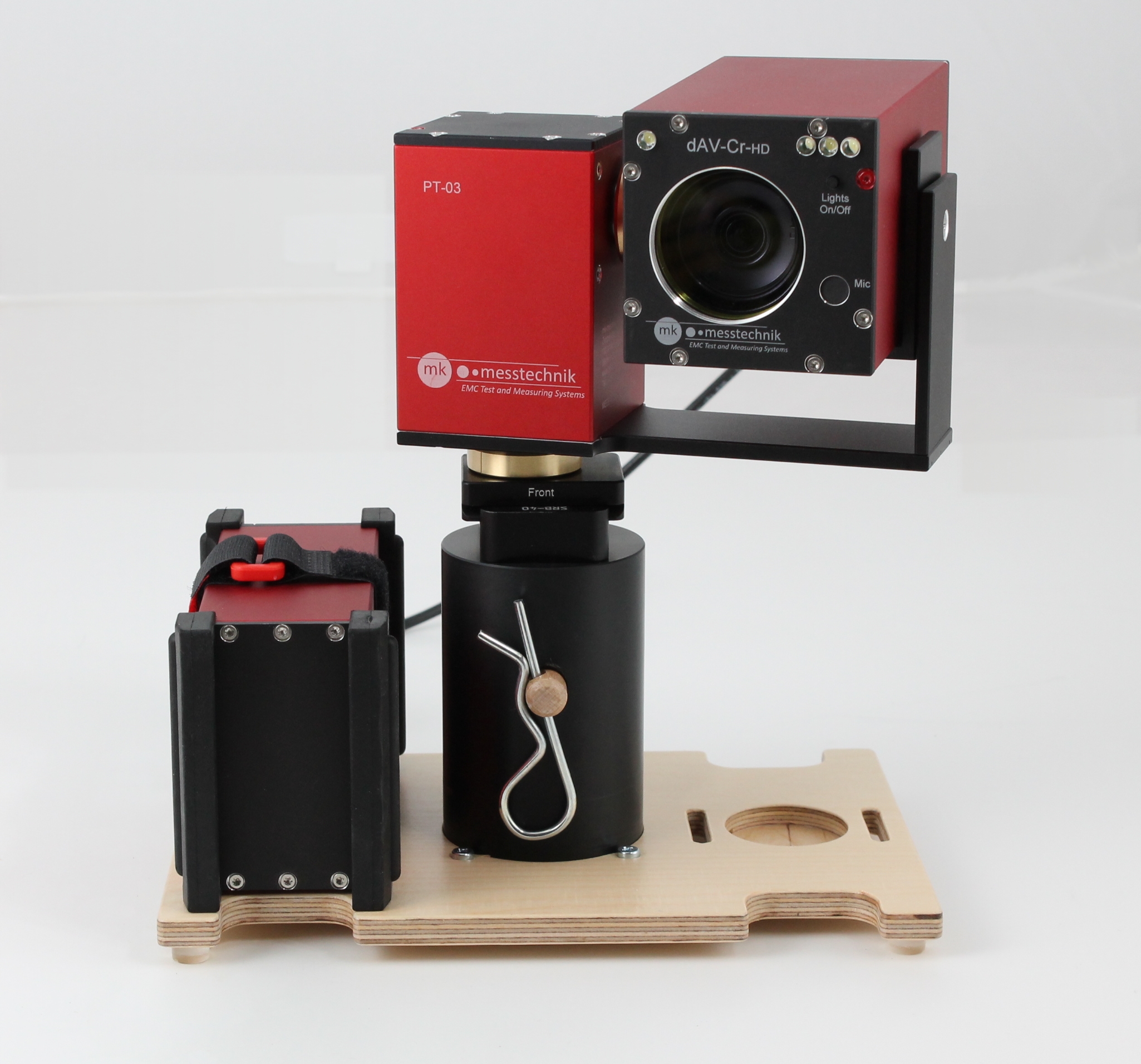

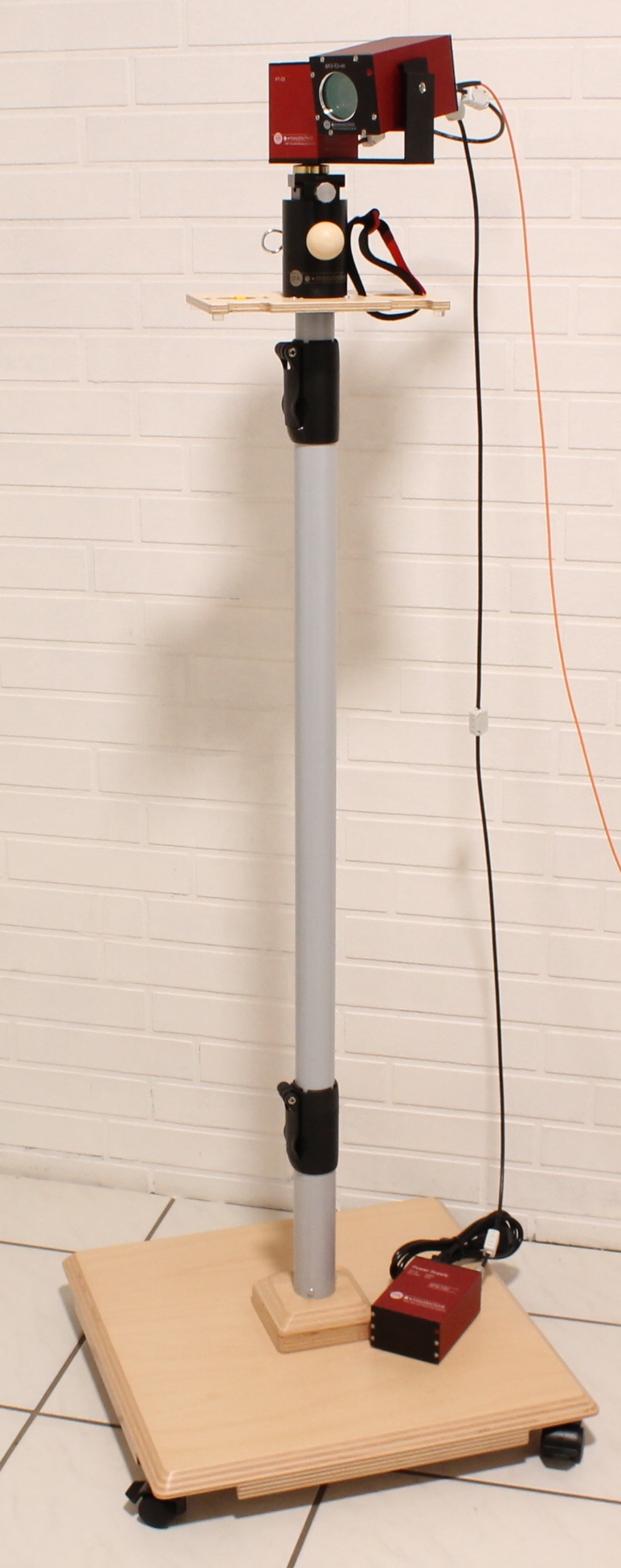

Monopod in der Gesamtansicht, Kamera mit Schwenkkopf und AkkupackNahansicht einer auf dem Monopod befestigten Kamera mit Schwenkkopf und AkkupackThe platforms of our Monopod are completely made of wood, the vertically adjustable pole is made of glass fibers. The board on which the camera and the pan/tilt unit are mounted, can be removed easily by pulling the splint. By default, the monopod comes with fell gliders, ball rollers integrated into the pedestal are optional (only fit for even surfaces).
With the help of a quick release clamp mounted on the camera or the pan/tilt unit, the system is set up fast. In addition, the monopod can be disassembled completely for storage and transporation.



Minimal height with locking casters 130 cm
Maximal height 170 cm



Flexible tripod

Microkamera mit GorillapodThe flexible tripod is particularly suitable for our dAV-Cr-HD-µ-camera, since it can be mounted on head rests or steering wheels and it takes up little space.



head rest mount HM

Mountings for the use in vehicles



Headrest mount HM

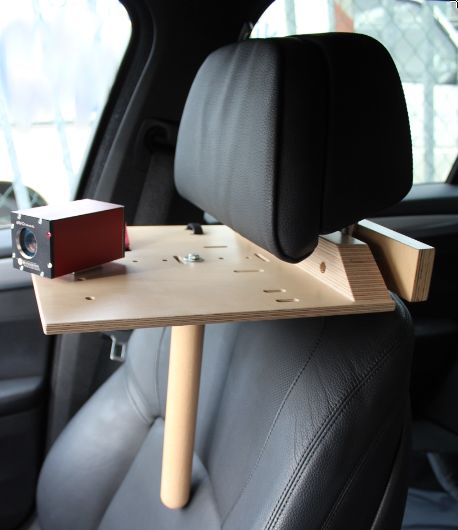

The camera AV-C as well as the external batteries can be fixed on the camera holder HM. The visible area of the camera can be adjusted by the provided 2D Panoramic Head.
The holder itself is fixed at the head rest of a vehicle with a wing bolt and a counter support. In order to minimize vibrations, an additional support to the backrest can be installed.



Seatbox SB

seatbox SM

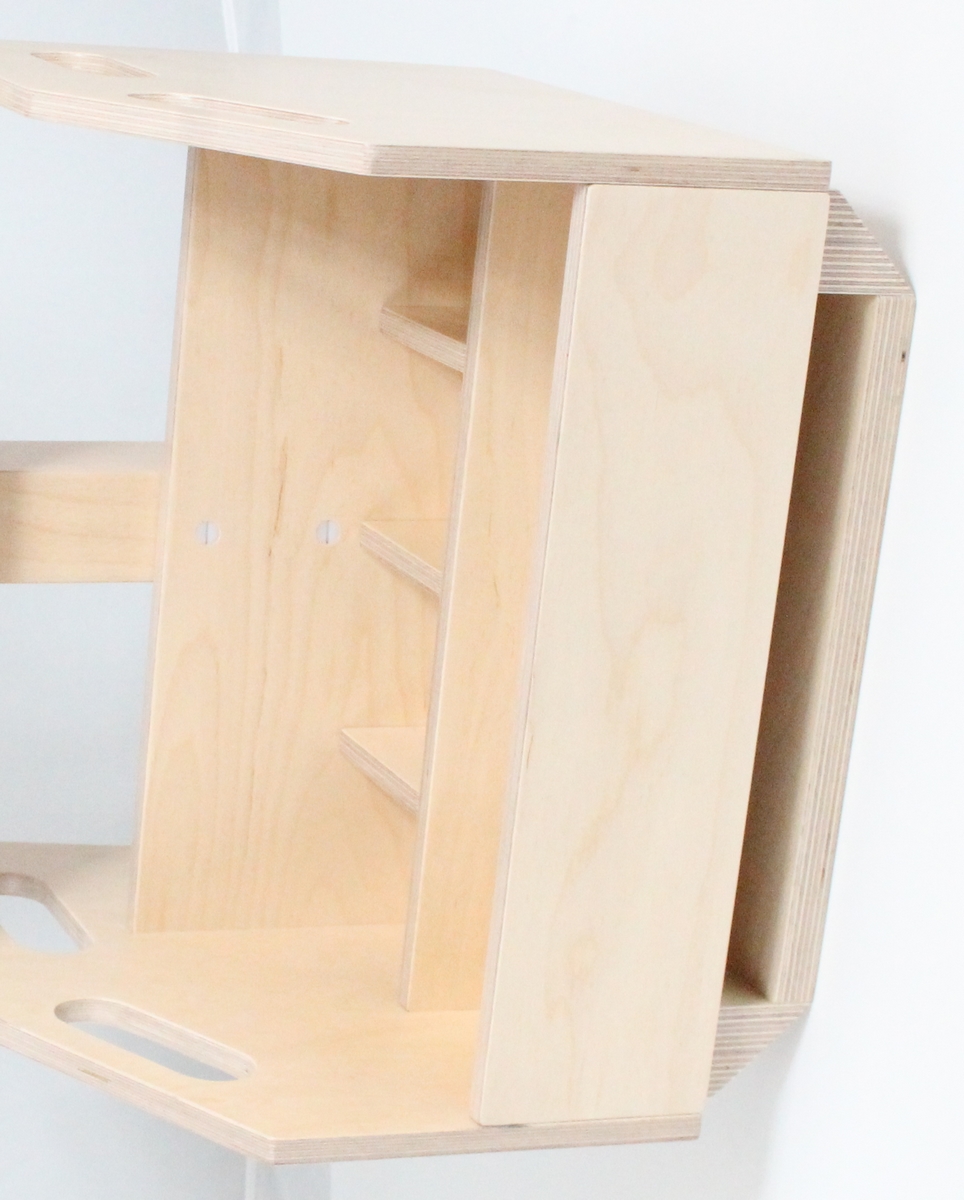

As an alternative to the camera holder, the "seatbox" SB is available. It is simply put on the car seat. As is the case with the camera holder, the camera and its batteries are also mounted by the help of a 2D Panoramic Head and a velcro tape. The height and the angle of the board can be adjusted with the help of a wooden peg.









Seatbox special (SBtc)

Sitzkiste Spezial

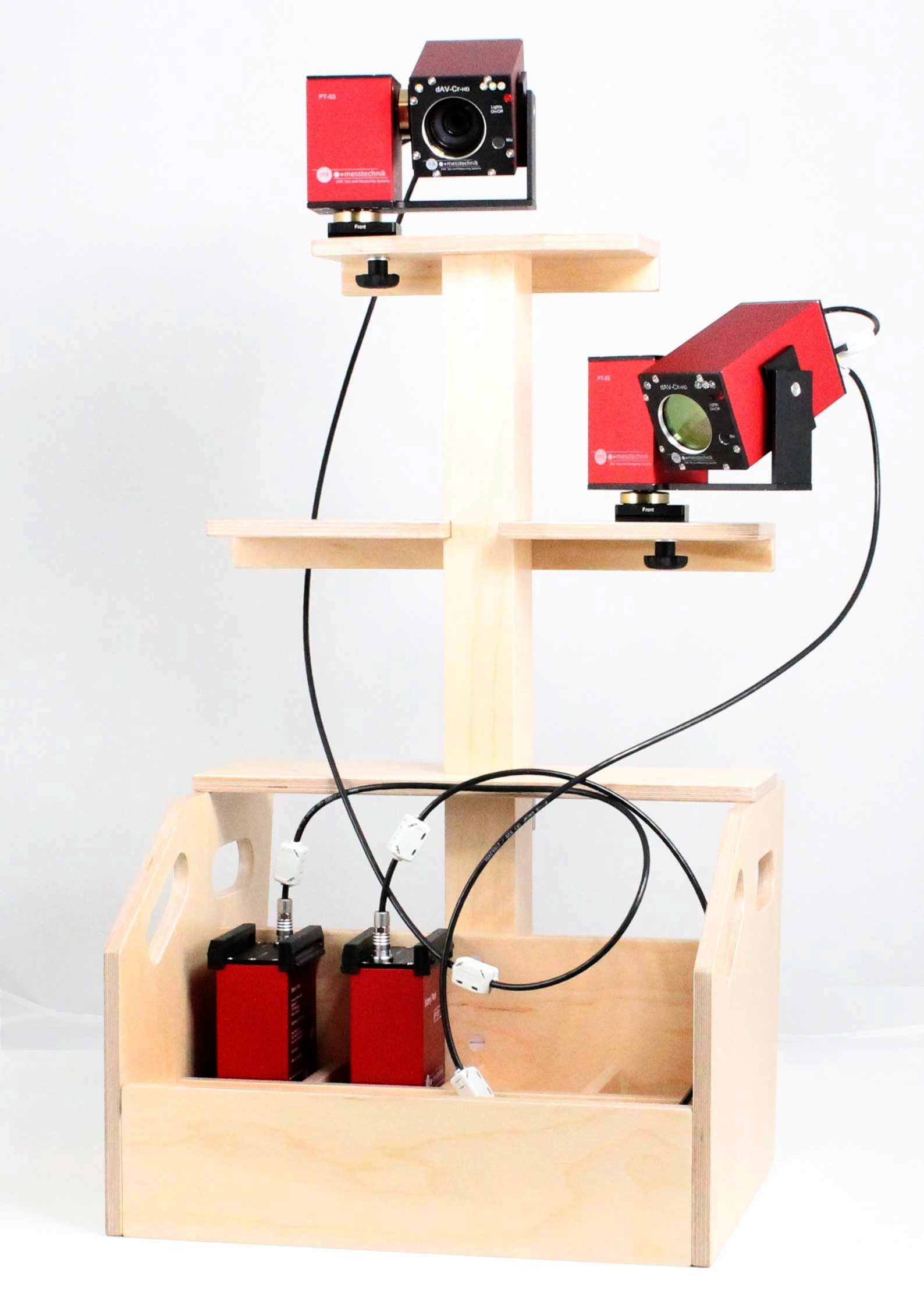

Up to 6 cameras and Pan/tilt units can be mounted on the "seatbox special", the battery packs can be stored in the compartments and are fixed with velcro stripes. In addition, the holes at the two sides of the seatbox are for easy transportation.
