optoChargeCom - in development (available approx. 3rd quarter 2025)
The optoChargeCom system is a bidirectional optical transmission device that transmits communication data between an Electric Vehicle Supply Equipment (= EVSE), i.e. charging Station, and an Electric Vehicle (= EV). It consists of two battery supplied devices that are connected to each other via an optical fiber.
With the optical transmission and the shielded case, this system is suitable for the high requirements during automotive EMI and EME tests (for example CISPR 25 Class 5).
Please note: Not all charging standards and addional features are implemented yet.
In April 2025, we have successfully done several bring ups and first EMC tests (besides the standard test with our Vector test system) with the CP transmission in real life (CHademo and GB/T are still undergoing bring up as real test samples currently are missing).
Burst and surge test with up to 1kV as well as conducted emissions tests (CISPR 16) showed satisfying results and our prototype will now undergo a further travel to other test labs to prove its functionality.

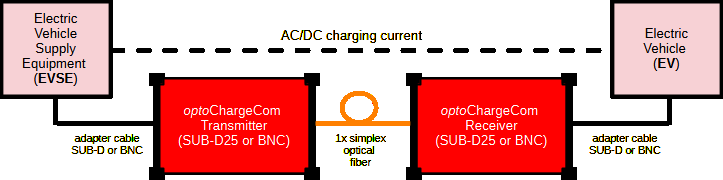

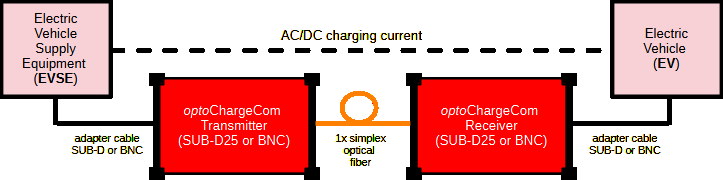

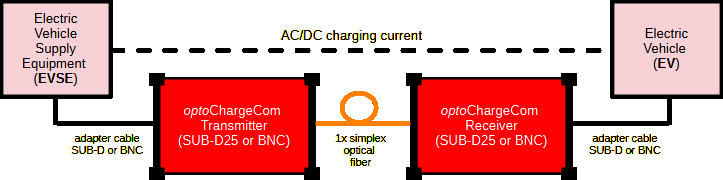

Application
Technical Data
| Charging standards: | CCS, CHAdeMO, GB/T |
| Data signal interfaces: | Control Pilot (PLC), CAN, Low-Level Signals, addional signals (e.g. temperature monitoring and connector/inlet lock signal) |
| Data direction: | bidirectional |
| Input (transmitter): | BNC connector (for Control Pilot), D-SUB-15 female (for all other signals) |
| Input (receiver): | BNC connector (for Control Pilot), D-SUB-15 female (for all other signals) |
| Power supply: | integrated batteries 4 Ah, consisting of 7x NiMH cells, 8.4 V operating time with fully charged batteries: approx. 10 h operating time can be extended with an external battery pack |
| Charging connector: | Binder 712 (push-pull 12 mm PP12 or 9 mm PP9 on request) |
| Housing: | anodized aluminum with rubber protectors (stackable) 140 mm x 86 mm x 65 mm 4 mm connector for grounding |
| Weight: | approx. 760 g, each device |
| Optical connector: | 1x FSMA / simplex mulmode fiber 62.5/125 µm, 850 nm, OM1 |
Downloads
Accessories and options
- external Power Pack with 5 cells (4 Ah or 10 Ah) for run time enhancement
- push-pull charge connector (advantage: save setup time)
- ...
