optoCAN-FD SIC

optoCAN-FD mit flexibler Datenrate

The optoCAN-FD SIC system can be used for the optical transmission of high speed CAN signals with transmission rates of up to 8 Mbit/s.

A transceiver of the series TJA146x is used for signal improvement capability (= SIC). According to the specification of the chipset, the TJA146x reduces the overshoot of signals and due to a higher signal integrity it enables higher data rates even in more complex topologies.

The optoCAN-FD SIC is compatible to the optoCAN-FD, optoCAN-FD-D, optoCAN-HS, and the optoCAN-HS-D.

The system consists of two battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests with automotive standards such as CISPR 25 class 5.

If requested, one of the optoCAN-FD SIC transceiver can be built into a 19” rack case. If the equipment is always used at the same location, this reduces errors, setup time, and space on the tables of the control room. Up to 13 different or same automotive link channels can be integrated into a 3HE case powered by one power supply (additional channels can be purchased and integrated later on).

Application

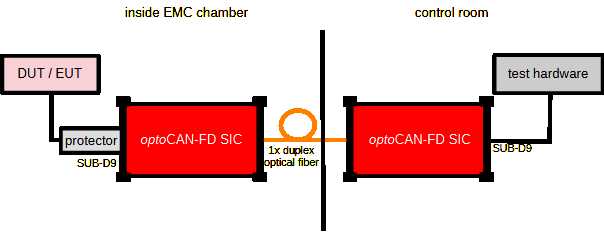

Standardaufbau der optoCAN-FD SIC

Technical data

Channels: 1 channel
Data rate: up to 8 Mbit/s
Date direction: bidirectional
Input: SUB-D9 female
Output: SUB-D9 female
CAN Transceiver: TJA1462BT
CAN Choke: B82789C0513N002, 51 uH (other chokes on request)
Termination: Termination switchable (60 Ω, 120 Ω, open/infinite) (external protector 120 Ω)
Power supply: integrated batteries 4 Ah, consisting of 5x NiMH cells, 6 V
operating time with fully charged batteries: approx. 30 h
operating time can be extended with an external battery pack
Charging connector: push-pull 12 mm or Binder 712. Push-pull 9 mm on request
Housing: anodized aluminum with rubber protectors
approx. 135 mm x 86 mm x 65 mm
Weight: approx 800 g one device
Optical connector: 2x FSMA / 1x duplex multimode optical fiber 62.5/125µm, 850 nm

Accessories and options

  • 5 cell external power pack (4 Ah or 10 Ah) for run time enhancement
  • push-pull charge connector (advantage: save setup time)
  • other optical connectors available
  • 19” rack installation
  • for test setups where several interfaces are needed, we offer opto5x base units with five independent CAN channels
  • ...
