opto5x base unit

opto5x base unit with 5 LIN channels

 opto5x base unit with 5 LIN channels

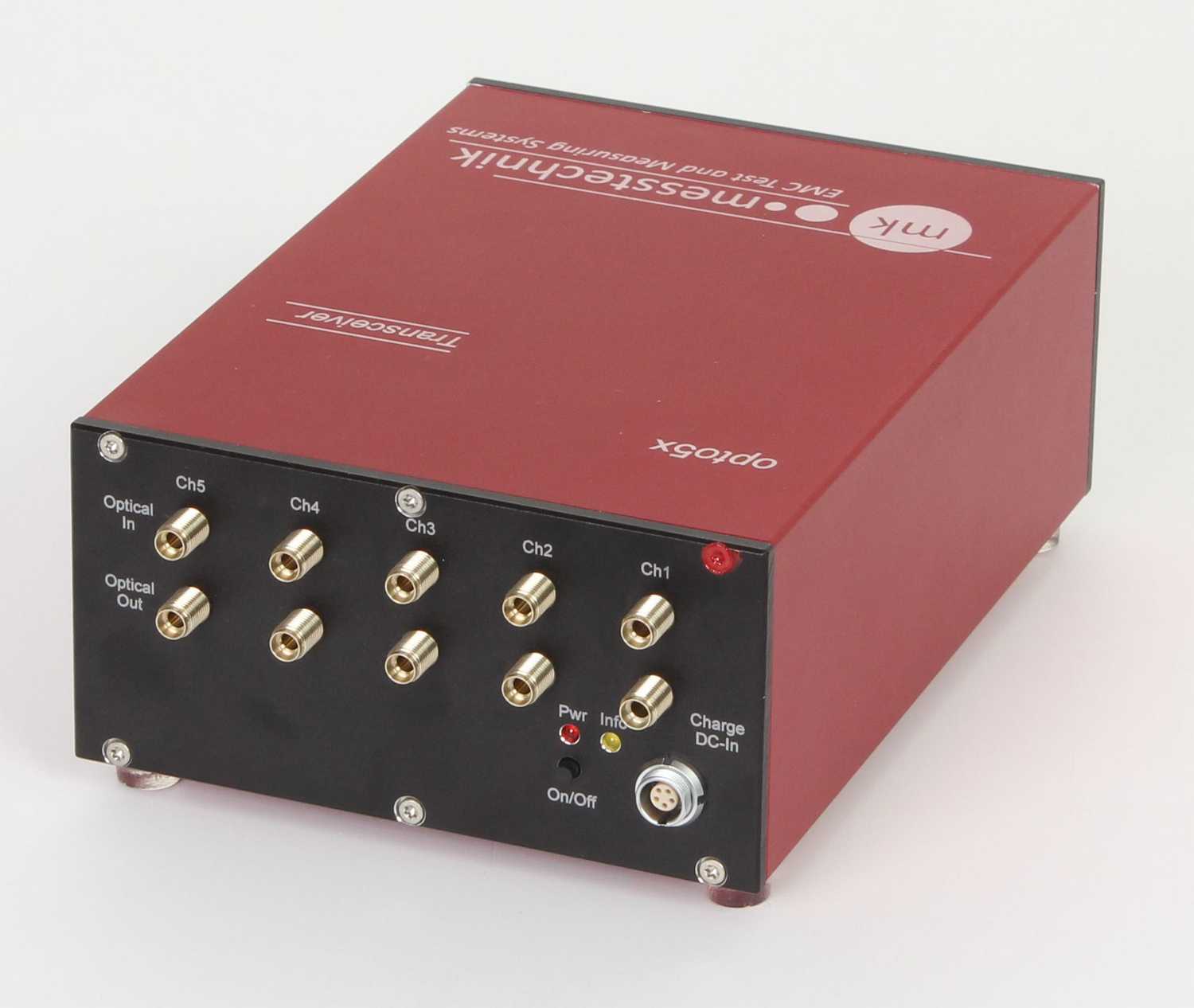

For test setups with many CAN or LIN channels, setup time and place can be reduced by using our opto5x devices. An opto5x can replace up to five single devices. In each base unit, up to five equal or different channels can be integrated. CAN-FD, CAN-HS und LIN are provided as standard, further interfaces are available on demand.

The opto5x devices can also be built with or without integrated batteries or with different charge connectors. All channels are compatible to our single devices.

Via the connection plate made of aluminum, GND is connected centrally for the opto5x. The CAN devices initially do not have a termination resistor. Latter one is defined by the protector which is plugged into the SUB-D connector (60 Ω or 120 Ω).



opto5x base unit with 5 CAN-FD channels

 opto5x base unit mit 5 CAN-FD-Kanälen



Options

    • 5 cell external power pack (4 Ah or 10 Ah) for run time enhancement
    • push-pull charge connector (advantage: save setup time)
    • other optical connectors available
    • 19” rack installation
    • ...
