optoChargeCom-CP (= Control Pilot)
The optoChargeCom-CP system (CP = Control Pilot) is a bidirectional optical transmission device that transmits communication data between an Electric Vehicle Supply Equipment (= EVSE), i.e. a charging Station, and an Electric Vehicle (= EV).

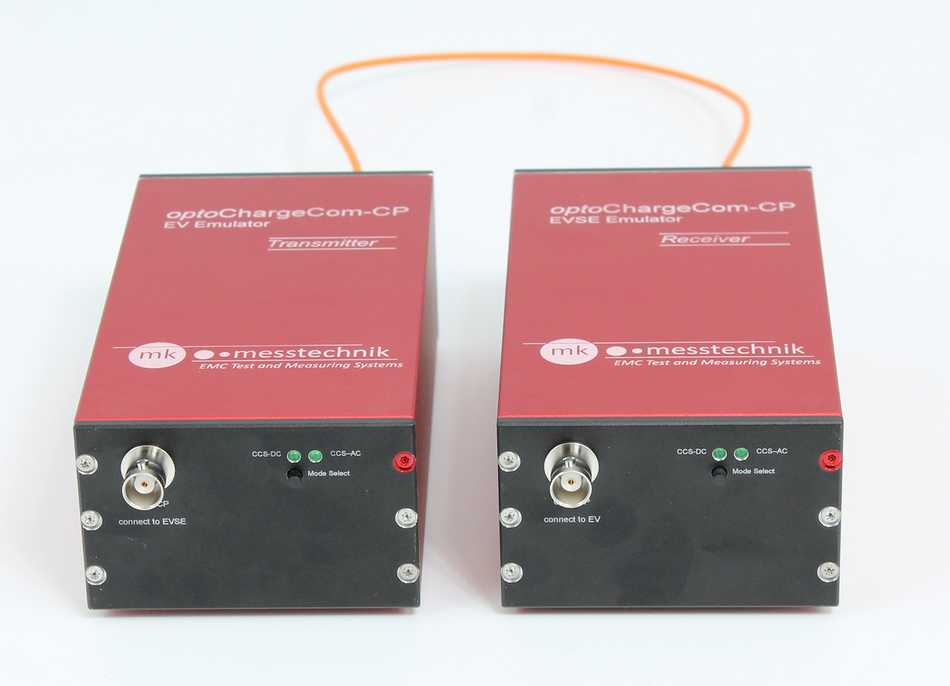

It consists of two battery supplied devices that are connected to each other via an optical fiber. With the optical transmission and the shielded case, this system is suitable for the high requirements during automotive EMI and EME tests (for example CISPR 25 class 5).
Please note: Not all charging standards and additional features are implemented yet.

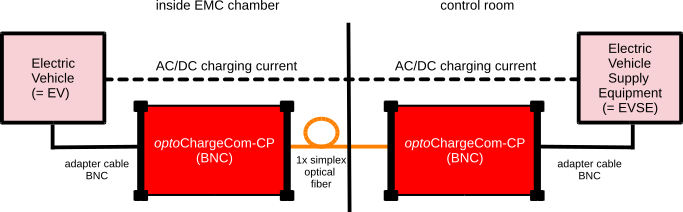

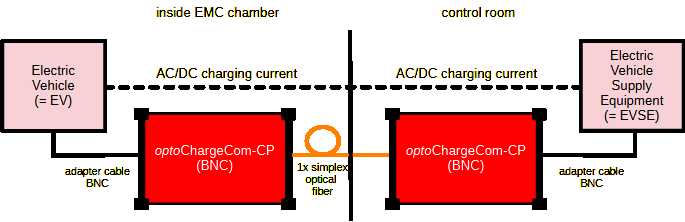

Application
Technical data
| Charging standards: | Control Pilot (= CP), CCS1, CCS2, Power Line Communicaon (= PLC) CCS1/CCS2 evaluated / verified with Vector test hardware GB/T, CHAdeMO on request |
| Data signal interfaces: | Control Pilot (PWM, PLC) |
| Data directi on: | bidirectional |
| Input (Transmitter): | BNC connector (for Control Pilot) |
| Input (Receiver): | BNC connector (for Control Pilot) |
| Power supply: | integrated batteries 4 Ah, consisting of 7x NiMH cells, 8.4 V operating time with fully charged batteries: approx. 10 h operating time can be extended with an external battery pack |
| Charging connector: | Binder 712 (push-pull 12 mm PP12 or 9 mm PP9 on request) |
| Housing: | anodized aluminum with rubber protectors (stackable) 140 mm x 86 mm x 65 mm 4 mm GND connector (GND) |
| Set-up interface: | USB Type B (cable is not included) |
| Weight: | approx. 760 g, each device |
| Optical connector: | 1x FSMA / simplex multimode fiber 62.5/125 µm, 850 nm, OM1 |
Downloads
Accessories and op tions
- external Power Pack with 5 cells (4 Ah or 10 Ah) for run time enhancement
- push-pull charge connector (advantage: save setup time)
- ...
