optoDSI3

The optoDSI3 system can be used for the optical transmission of DSI3 signals with transmission rates of up to 200 kbit/s. Off set and gain are adjustable via USB interface and terminal program or Windows software. The system has a bidirectional functionality and is capable of sync pulse transmission for parallel and serial bus setups.

The connected sensor is supplied by the device with the current that is applied to the other optoDSI3 transceiver by a ECU.

The system consists of two battery supplied transceivers connected to each other with an optical fiber. With the optical transmission and the shielded case, the system is well equipped for EMI and EME tests with automotive standards.

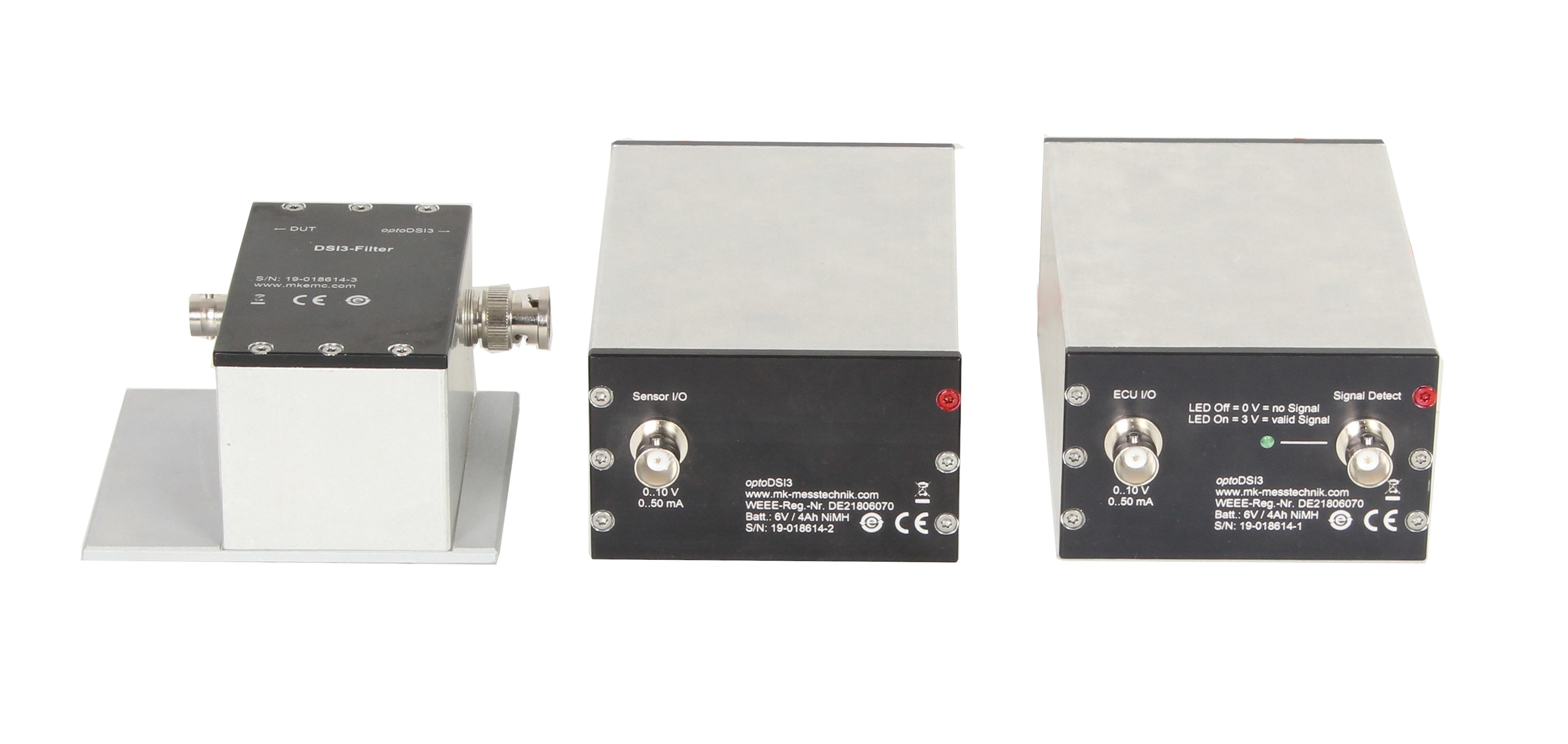

optical transmitters for DSI3 signals



Application

standard setup of the optoDSI3

Technical data

Channels: 1
Data rate: up to 200 kbit/s
Data direction: bidirectional
Input: BNC
Output: BNC
Power supply: integrated batteries 4 Ah, consisting of 5 NiMH cells, operating time with fully charged batteries: approx. 8 h
Housing (LxWxH): Chromated aluminum
135 mm x 86 mm x 65 mm
Gewicht: ca. 760 g je Gerät
Optical connector: 1x FSMA / 1x simplex multimode optical fiber 62.5/125µm

Optionen

  • 5 cell external power pack (4 Ah or 10 Ah) for run time enhancement
  • push-pull charge connector (advantage: save setup time)
  • other optical connectors available
  • 19” rack installation
  • ...
