Camera with full HD resolution for HiRF - dAV-Cr-HD HiRF

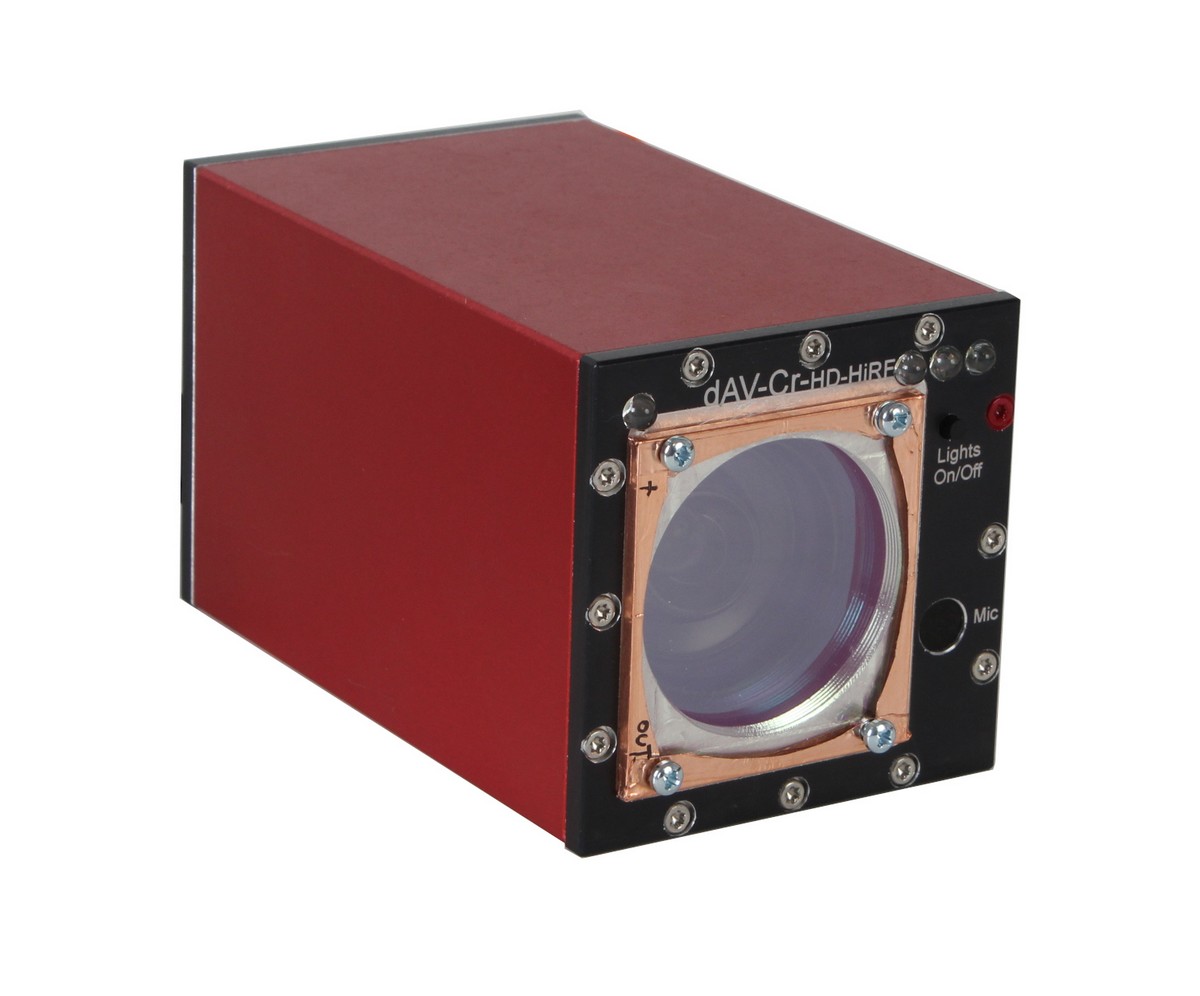

The dAV-Cr-HD HiRF camera can be used for the optical and acoustical monitoring of devices under test during EMC measurements. It has an integrated mono microphone and can be set via an external set-up LCD and eight buttons on the case or via remote control from the control room. Because of the HD-resolution, high quality DUT surveillance can be done.
With the option -HiRF the camera and the optional pan/tilt unit are optimized for very high electromagnetic fields and frequencies, e.g. as in reverb chambers. The devices are equipped with additional screws and special cables for a high immunity: >> 600 V/m up to 40 GHz.
THe camera is provided with two different, removable shielded glasses. For very high fields the shielded glass with mesh addon is used.
With the optical transmission and the shielded housing, the camera is well equipped for EMI and EME tests.
Technical data
| General data: | sensor: 1/2.8" progressive CMOS sensor (2.1 Megapixel) |
| zoom: 30x (f/1.5) optical, 12x digital | |
| resolution: 1920x1080p25 (option 720p60 on request) | |
| operating angle: 60.5° (wide end) to 2.3° (tele end) | |
| Microphone: | internal, mono |
| EMS limits: | up to 600 V/m and 40 GHz (suitable for rever chambers) |
| Receiver dAV-Rxx: | dAV-Rr-HD TT (table top) – up to 4 channels (i.e. 4 cameras can be connected) or dAV-Rr-HD 19" (19“ rack) – up to 8 channels or dAV-Rmrr 19" 4HU (19” switch matrix) – up to 19 channels or dAV-Rmrr 19" 8HU (19” switch matrix) – up to 40 channels |
| Power supply: | external battery pack BP120 with 10 NiMH cells (2x included for continuous measurements), 4 Ah; 12 V; operating time approx. 8 - 10 h shielded power supply SPS120 (230 V and 115 V available) |
| Housing: | anodized aluminum case approx. 135 mm x 70 mm x 70 mm incl. connectors and push buttons |
Options / accessories
- pan-/tilt (PT-02 for fix installation or PT-03 for mobile use)
- Mounting solutions
- software mk-camera camera control software for PC to control the cameras and pan/tilt units
- Joystick - remote control of camera and pan/tilt unit via a joystick instead of buttons
- optical fiber: Different connectors and fibers available (see datasheet)
