Mountings for walls in reverberation chambers

Aluminum camera wallmount (ACM)

The wallmount ACM can be fixed to the walls with the help of screws. A camera with pan/tilt unit can be placed there.

The length of the wallmount is customized as a short version is sufficient for an anechoic chamber with ferrite tiles. For an EMC chamber with pyramid absorbers the longer version of the wallmount is necessary. If drill holes and the mounting plate is known, we can adapt to these values.

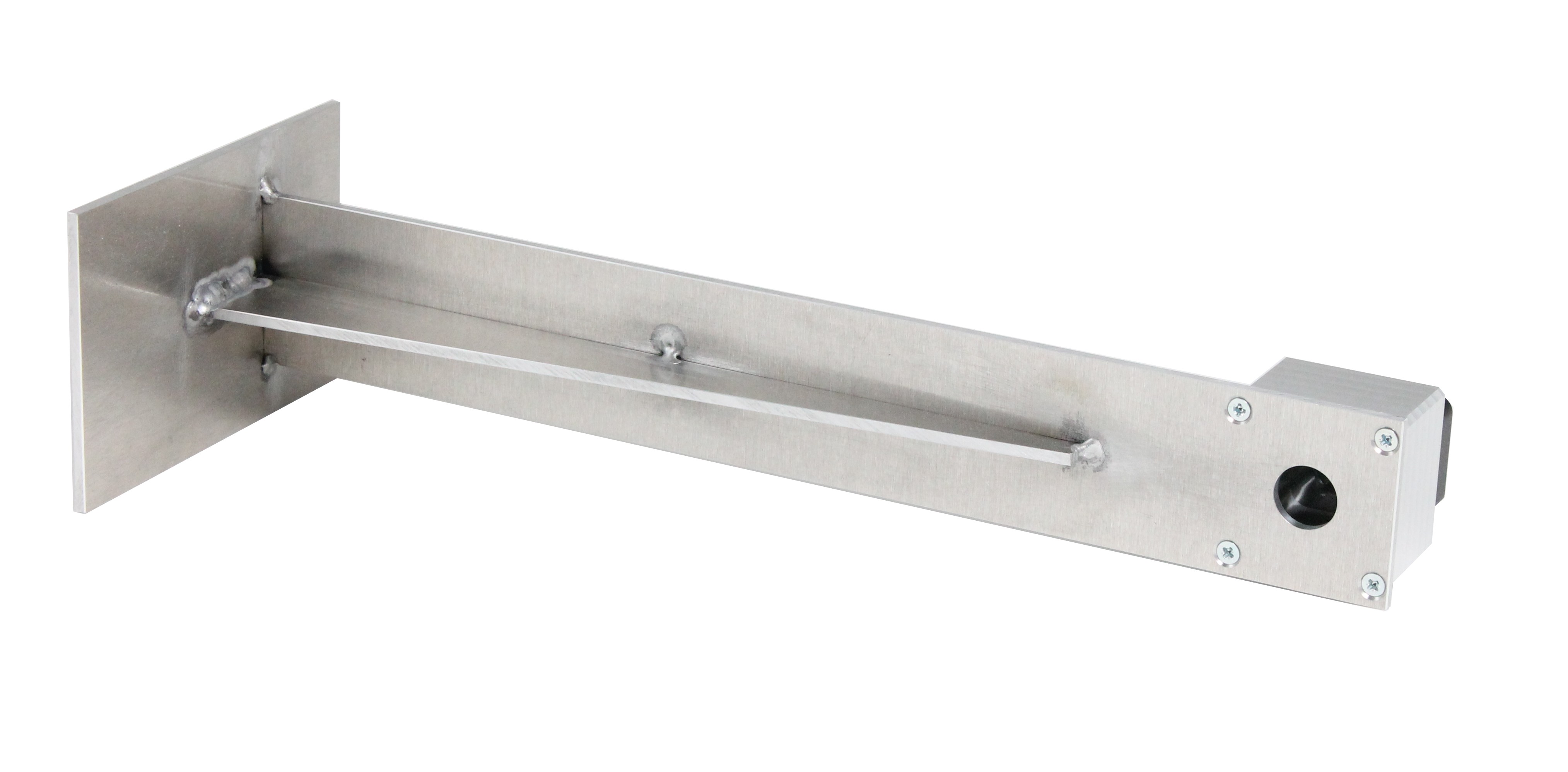

The example wallmount on the photo below was been clear lacquered.

Mobile solutions

Monopod - aluminum

The platforms of our monopod are completely made of aluminum, the vertically adjustable pole is made of glass fiber reinforced plastic. The board on which the camera and the pan/tilt unit are mounted, can be removed easily by pulling the splint.

By default, the monopod comes with an even aluminum pedestal.

With the help of a quick release clamp mounted on the camera or the pan/tilt unit, the system is set up fast. In addition, the monopod can be disassembled completely for storage and transportation.

Minimal height with casters 130 cm
Maximal height 170 cm

If no pan/tilt unit is used, the camera can be mounted with a ballhead - which is also produced in-house - onto the monopod head (as shown in the photo below. The photo shows a monopod head, e.g. the upper part of the monopod, made of wood).

Ballheads for photographers and for industrial use ware produced in our mechanical workshop, mostly for our brand FLM
